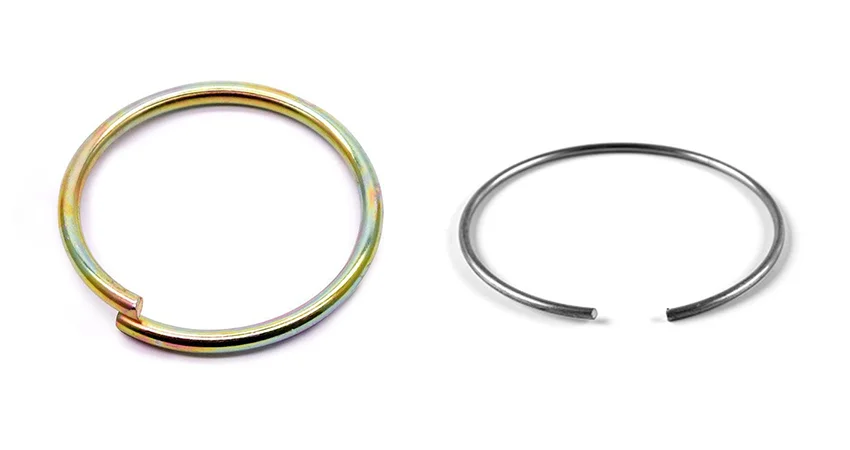

Round wire retaining ring
The round wire retaining ring is a common fastener, usually used for the fixation of shafts or holes to prevent the movement or detachment of parts in the axial direction. The round wire retaining ring is an elastic retaining ring made of round steel wire, which is fixed on the shaft or hole through its elastic deformation. It has the characteristics of simple structure, convenient installation and reliable fixation, and is widely used in various mechanical equipment.

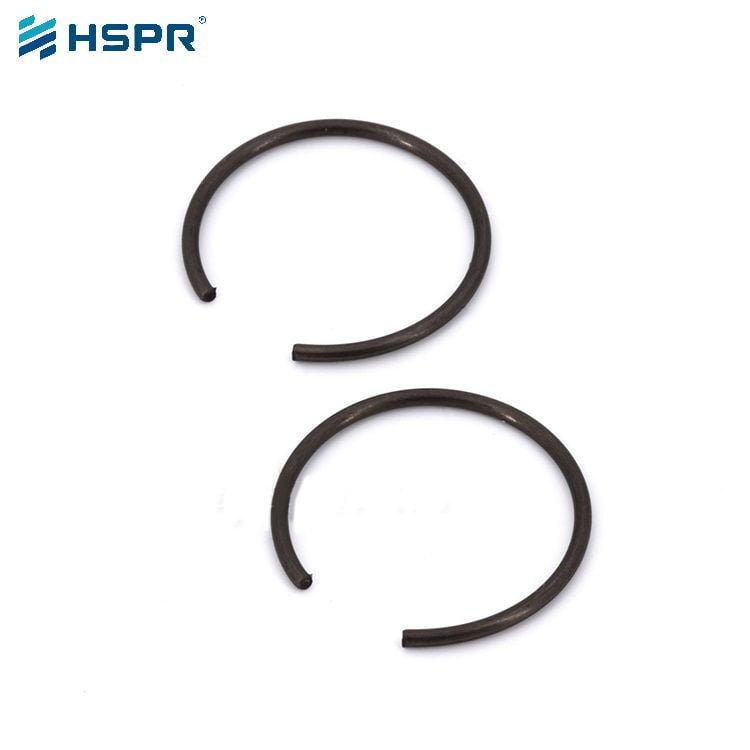

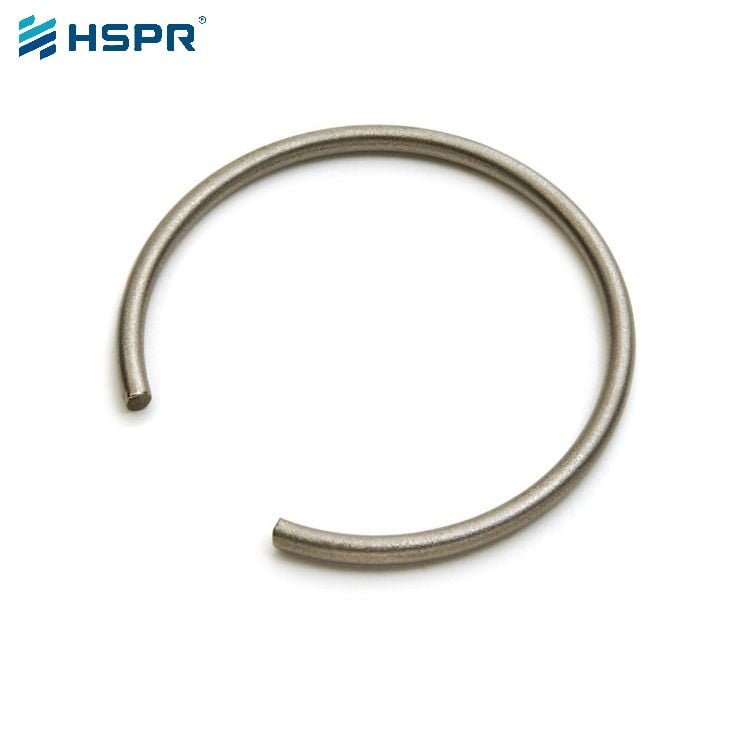

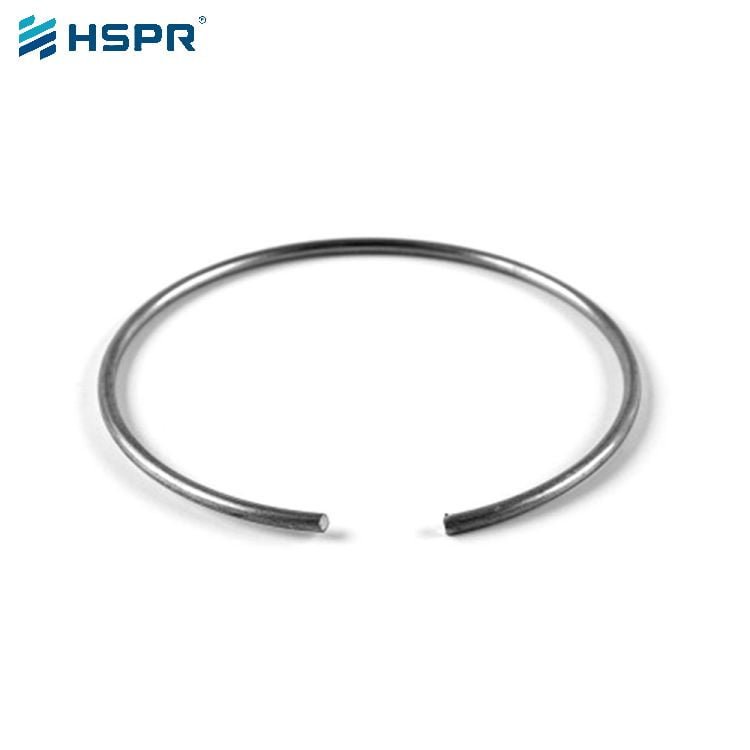

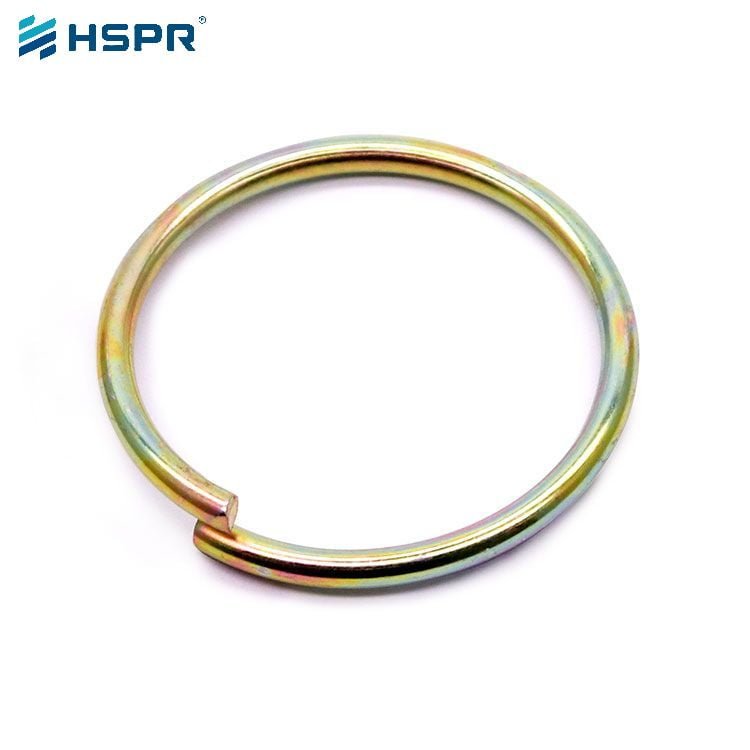

The round wire retaining ring is an open ring made and cut from round spring wire. The round wire snap ring is designed for heavy circular grooves in external or internal shaft or hole applications. Round wire retaining rings tend to have stricter tolerances, yet their load-bearing capacity is smaller than that of square and rectangular rings.

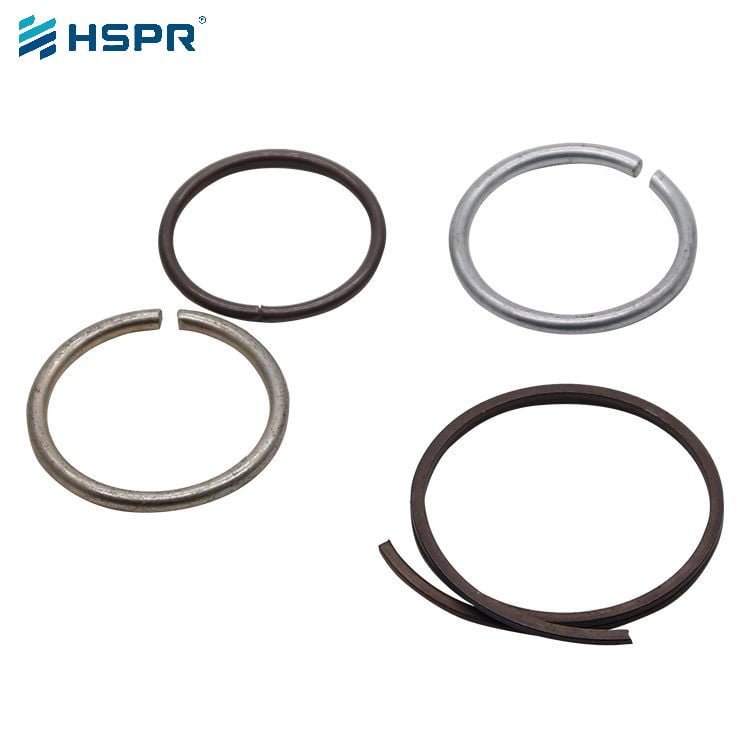

According to different application occasions and requirements, round wire snap ring can be divided into various types and specifications. Common types include internal snap rings and external snap rings, which are respectively used to fix parts in holes and on shafts. In terms of specifications, they are usually classified according to dimensions such as inner diameter, outer diameter, and thickness to meet the needs of different mechanical parts.
Materials and Manufacturing:
Round wire retainers are usually made of highly elastic metal materials, such as spring steel and stainless steel. These materials have good corrosion resistance and elastic deformation ability, which can ensure that the retaining ring maintains a stable fixing effect during long-term use. In the manufacturing process, processes such as stamping, cutting, and heat treatment are usually used to process the retaining ring into the required shape and size.
Application and Installation
Round wire retaining rings are widely used in fields such as automobiles, aerospace, and industrial machinery for the fixation of parts such as bearings, gears, and shaft sleeves. During installation, the retaining ring needs to be placed at the corresponding position of the shaft or hole first, and then it is pressed or pushed into place by special tools or equipment to ensure it is firmly fixed on the shaft or within the hole.
Precautions for Round Fixed Rings:
- Specification matching: When choosing a round wire retaining ring, it is necessary to ensure that the specification of the selected retaining ring matches the part to be fixed to avoid problems of improper installation or poor fixing effect.
- Material selection: Choose the appropriate material based on the usage environment and requirements to ensure the corrosion resistance and elastic deformation ability of the retaining ring.
- Installation plan: Install according to the correct installation method to avoid damaging the retaining ring or parts. During the installation process, it is necessary to pay attention to avoiding the use of excessive force or improper tools to avoid causing damage to the retaining ring or parts.
Installation plan: Install according to the correct installation method to avoid damaging the retaining ring or parts. During the installation process, it is necessary to pay attention to avoiding the use of excessive force or improper tools to avoid causing damage to the retaining ring or parts.
The round wire retaining ring is mainly used in mechanical devices to fix, position or restrict the axial or radial movement of components. In some precision instruments, the round wire snap ring can ensure the accurate position of internal components and guarantee the normal operation of the instrument. In the hub assembly of a bicycle, the round wire retaining ring may also be used to fix the balls or shaft sleeves.
As an important fastener, the round wire retaining ring plays an important fixing role in mechanical equipment. When choosing and using it, attention should be paid to factors such as the diameter of the steel wire, the strength and ductility of the material, specification matching, material selection and installation methods, and whether the size of the retaining ring matches the components to be assembled, to ensure its stable and reliable operation.
