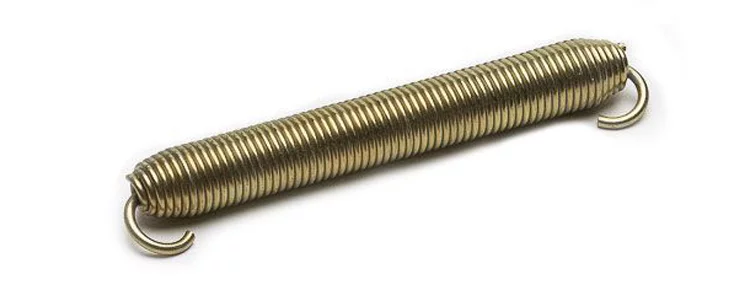

Custom Swivel Hook extension spring
Swivel Hook extension spring is a helical spring that is subjected to axial tension, and its end is designed as a swivel hook for easy connection and fixation. The end swivel hook design provides greater connection flexibility and convenience. Withstand axial tension, as opposed to the principle of compression springs. Tight and tight between the circle and the circle, no gap.
Universal tension springs work on the opposite principle of compression springs. When the force is not applied, the rings of the spring are closely side by side with no gap. When subjected to tension, the rings will be close together, producing a strong tensile force. According to the different bearing capacity, the universal tensile spring can be divided into ultra-light load type, light load type, light load type, medium load type, medium heavy load type, heavy load type and extended heavy load type.
Swivel Hook extension spring Application
Swivel Hook extension spring are widely used in situations where tension is required and rotary connections are required:
- Defense and aerospace: Used in various precision instruments and equipment to provide stable tensile support.
- Mechanical engineering: Used to provide precise tension control and regulation in conveyor belts, reels, tension test equipment, etc.
- Automotive manufacturing: Used for shock absorption, cushioning and force transfer in automotive suspension systems, engine parts, etc.
- Other fields: such as construction machinery, elevators, electronic equipment, etc.
The design parameters of the Swivel Hook extension spring:
- Free length: The total length of the spring without tension.
- Diameter:The outside diameter of the spring, the inside diameter of the spring and the inside diameter of the hole.
- Wire size: spring wire diameter, The diameter of the wire affects the bearing capacity and stiffness of the spring
- Materials: Usually use high-strength metal materials, such as high-carbon steel, stainless steel, etc
- Coils: The total coils of the spring
- Winding Direction(Left Hand, Right Hand)
- Ends: Swivel hook design details and dimensions.
- Load: The load value of the spring under different elongation.
- Maximum extension length: The maximum amount of elongation that the spring can withstand.
The advantage of the Swivel Hook extension spring:
- High strength: Made of high strength metal materials, can withstand greater tension.
- High reliability: The design and manufacturing process is rigorously calculated and tested to ensure the stability and reliability of the spring.
- Flexibility: The swivel hook design provides greater connection flexibility.
Other similar springs

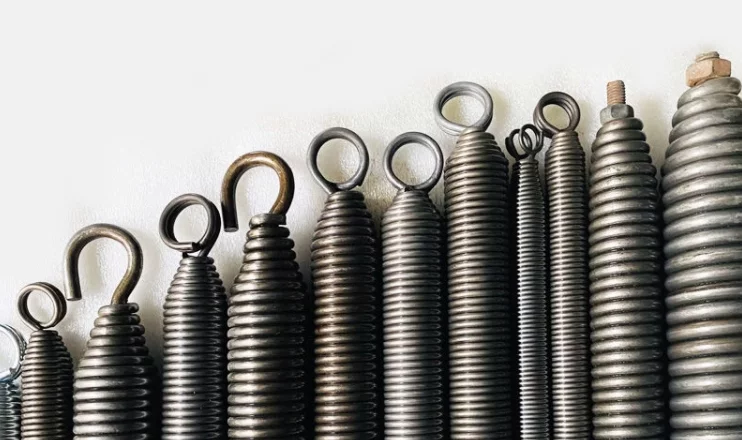

Coned End to HoldLong Swivel Eye, Coned End withShort Swivel Eye, Coned End with Swivel Hook, Coned End withSwivel Bolt
