V-Shaped Helical Torsion Spring

ByHSPR

Wire Diameter 1.0mm 65Mn Steel V-Shaped Helical Torsion Spring Angle 60 90 120 180 Degrees Custom Metal Springs.

Product Parameters:

  • Name:Torsion Spring
  • Materials: 65Mn Spring  Steel
  • Wire Diameter :1.0mm
  • Surface Treatment: high temperature quenching

Product Feature:

  1. Preferred raw material: It is made of high-quality 65Mn spring steel, which is not afraid of bending and has good toughness.
  2. Excellent elasticity: high plasticity, good fatigue resistance, uniform force, good firmness, and good texture.
  3. Fine workmanship: It is made with a high-precision spring machine. After multiple processes, each production process is strictly controlled, with small tolerances, and a smooth surface without burrs.
  4. Environmental protection and health: low content of harmful elements, low content of harmful elements such as S, N, P and inclusions.

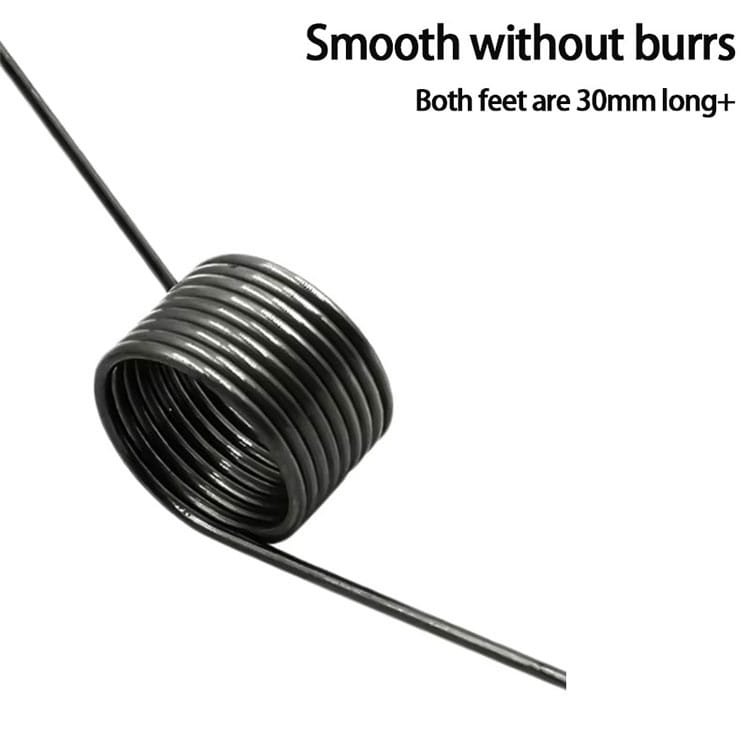

V Shaped Helical Torsion Spring

V-Shaped Helical Torsion Spring is a special form of torsion spring, which combines the characteristics of V-shaped spring and spiral spring, and has unique performance and application advantages.

V-Shaped Helical Torsion Spring is a kind of mechanical elastic element which uses elastic deformation of material to store energy and releases energy after external deformation. Its shape is V-shaped, and the spring is wound in a manner similar to a helical spring.

V-Shaped Helical Torsion Spring features:

  1. Small torque: Due to the different winding methods, the V-Shaped Helical Torsion Spring has a smaller torque than other types of springs, making its movement more stable.
  2. long life: The V-Shaped Helical Torsion Spring has a long life, can withstand a large number of flexural movement, usually can withstand more than 100,000 times of flexure without failure.
  3. Strong bearing capacity: the spring can withstand large compressive loads and tensile loads, suitable for a variety of occasions that need to bear greater external forces.
  4. High space utilization: V-shaped design enables the spring to store more energy in the same volume, improving the space utilization rate.

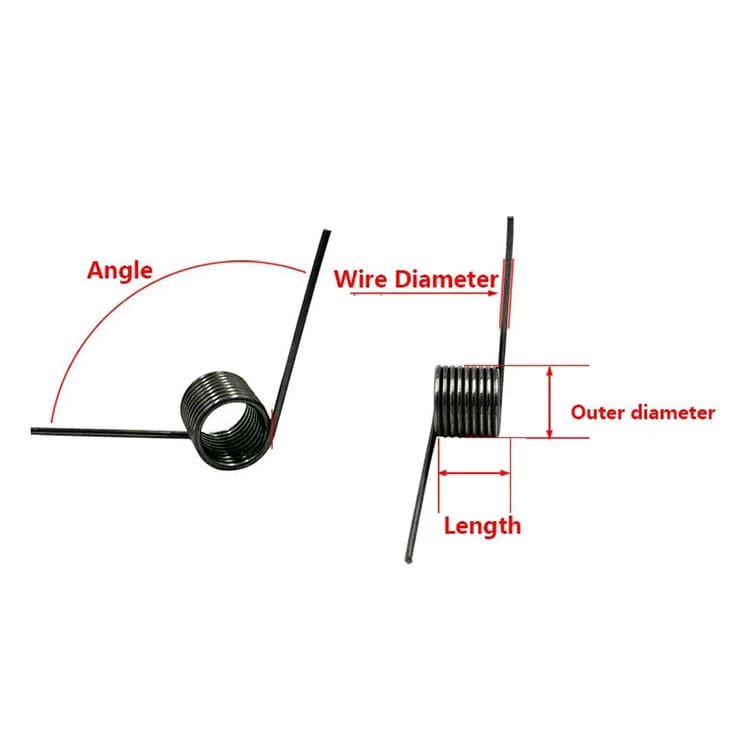

V-Shaped Helical Torsion Spring factory

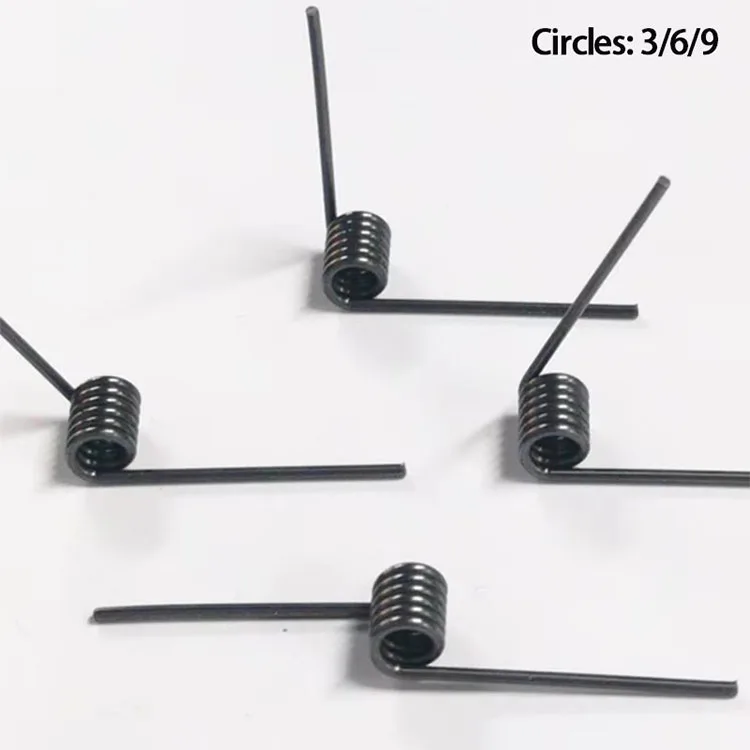

V-Shaped Helical Torsion Spring manufacturer

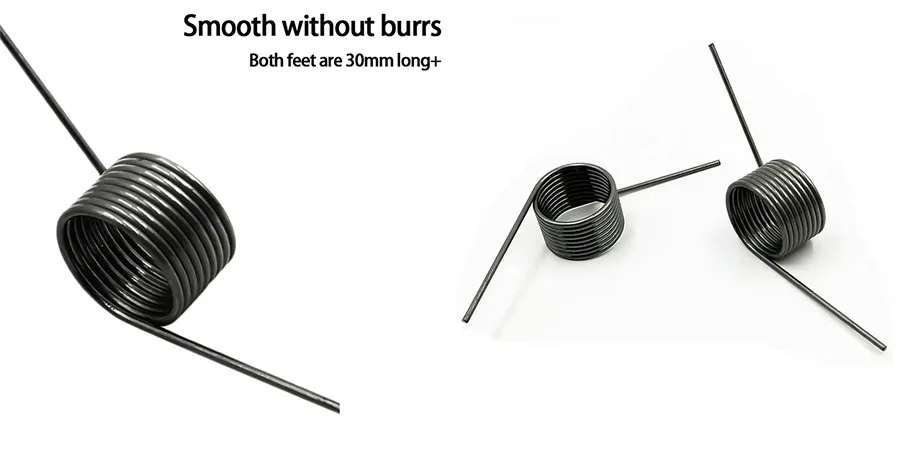

V-Shaped Helical Torsion Springs

The working principle of the V-Shaped Helical Torsion Spring is mainly based on its elastic deformation ability. When an external force acts on the spring, the spring will deform and store energy. When the external force disappears, the spring releases the stored energy and returns to its original shape. This process of elastic deformation and energy storage/release makes V-shaped spiral torsion springs play an important role in various mechanical devices.

Application field of V-Shaped Helical Torsion Spring:

  • Mechanical field: In industrial robots, assembly lines, manufacturing machine tools and other mechanical equipment, the V-Shaped Helical Torsion Spring can be used as a stable motion control element, used to change the height of the fixture, compensation parts wear and so on.
  • Light industry: In furniture, toys, lamps and other light industrial products, V-Shaped Helical Torsion Spring can be used as support and stability components for opening and closing, rotating, lifting and other actions, such as seat lifting, doors and Windows opening and closing.
  • Automotive field: In the automotive engine, seat adjustment, suspension system and other parts, the V-Shaped Helical Torsion Spring can be used as an important component of shock absorption, adjustment, support and so on, which helps to reduce body vibration and change the phase of the engine exhaust valve.

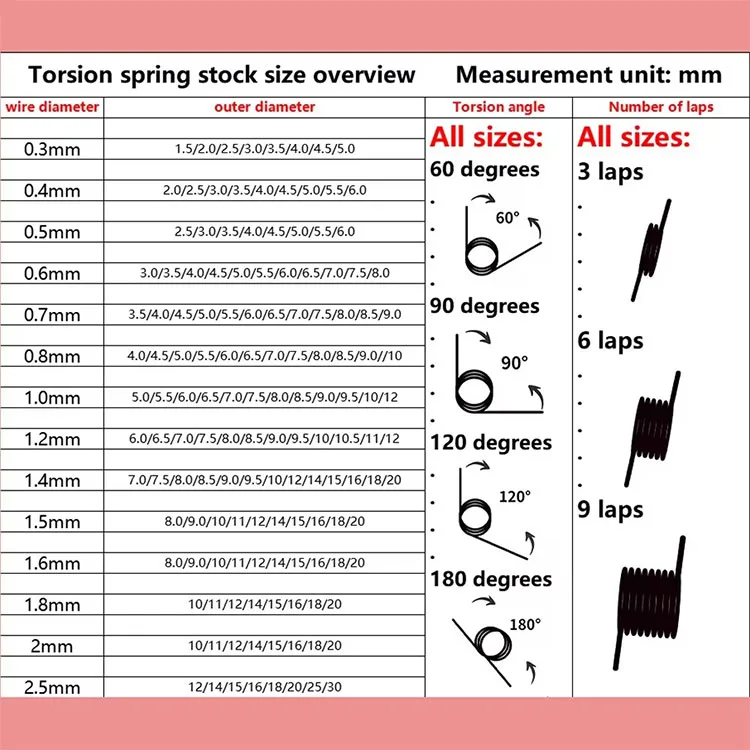

custom V Shaped Helical Torsion Springs

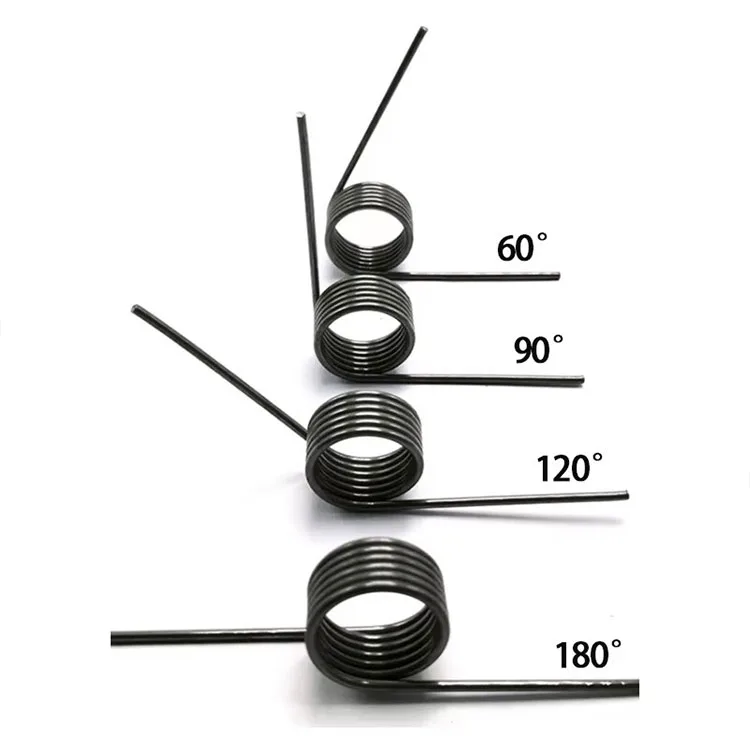

V Shaped Helical Torsion Springs manufacturer

When installing and using V-Shaped Helical Torsion Spring, the following points need to be noted:

  • Proper installation: Ensure that the spring is properly installed according to the guidelines provided by the manufacturer to avoid performance degradation or failure due to installation errors.
  • Regular inspection: Regular inspection and maintenance of the spring to ensure that it is in good working condition.
  • Avoid overload: Avoid loading the spring beyond its designed capacity to prevent damage or failure of the spring.

To sum up, V-Shaped Helical Torsion Spring are widely used in many fields because of their unique properties. In the process of use, its characteristics and application requirements should be fully considered to ensure that it can play the best performance and meet the actual needs.
