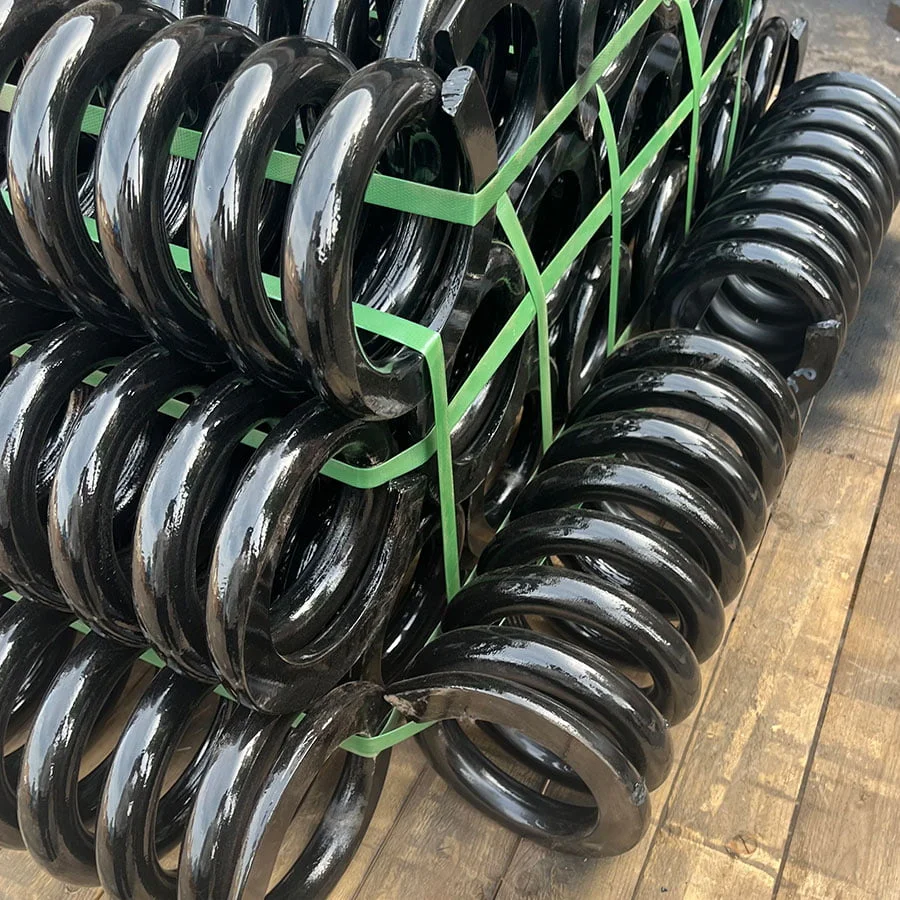

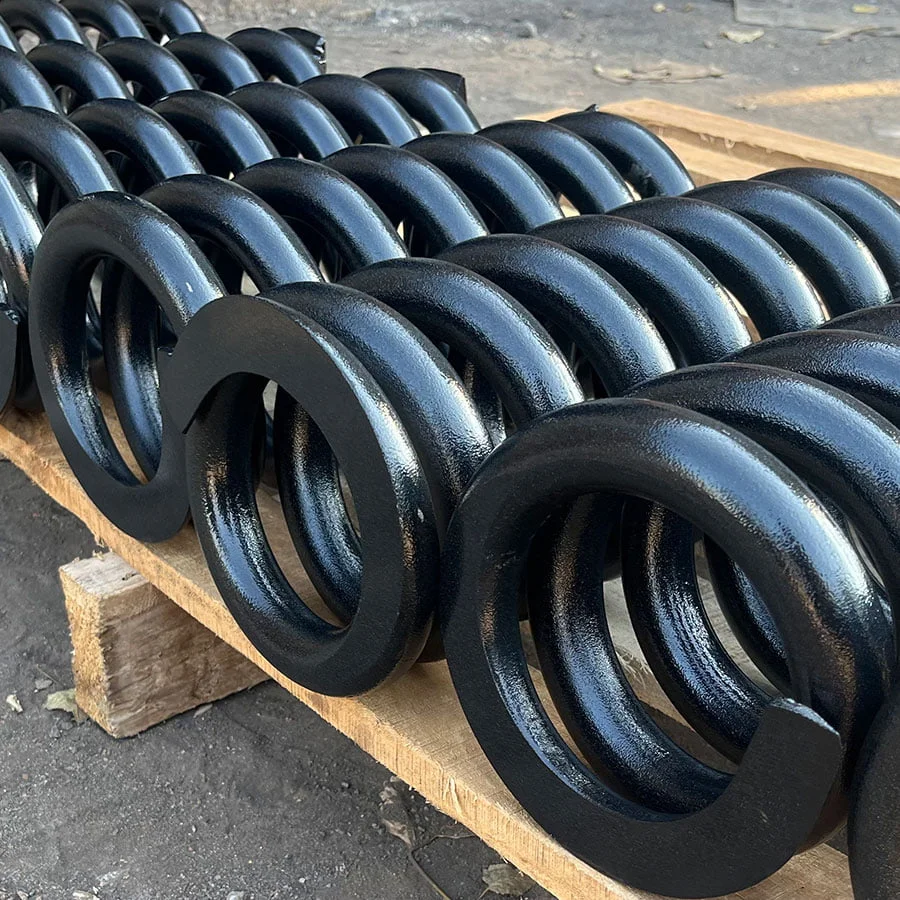

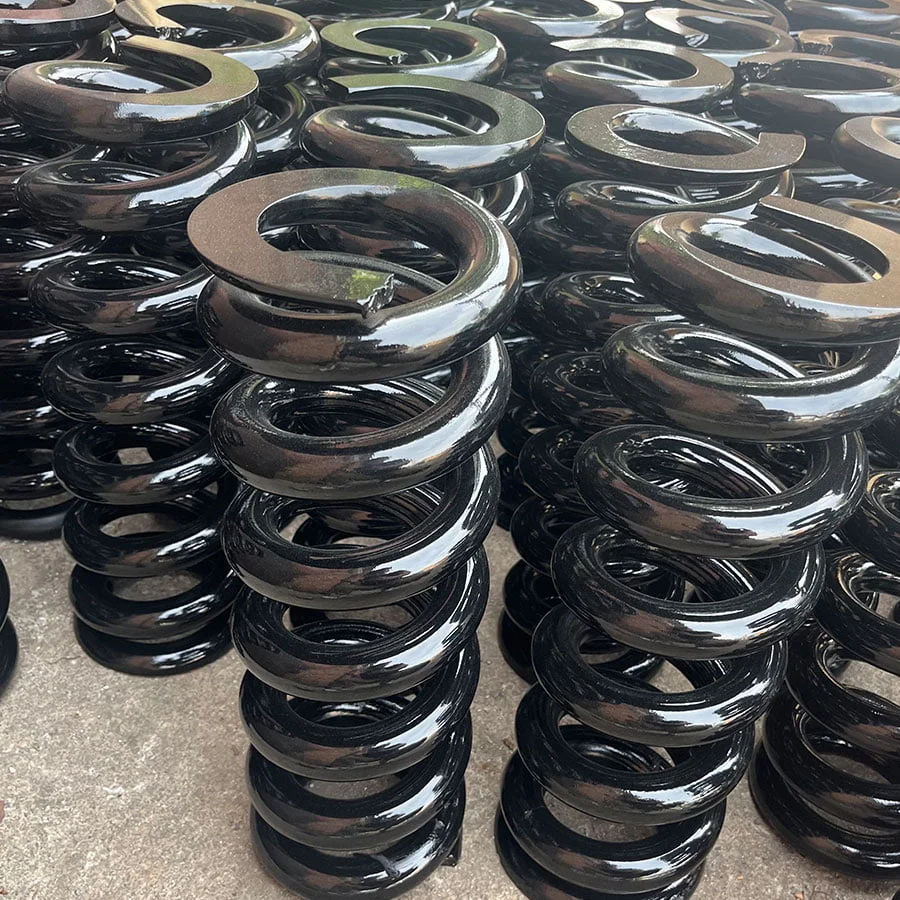

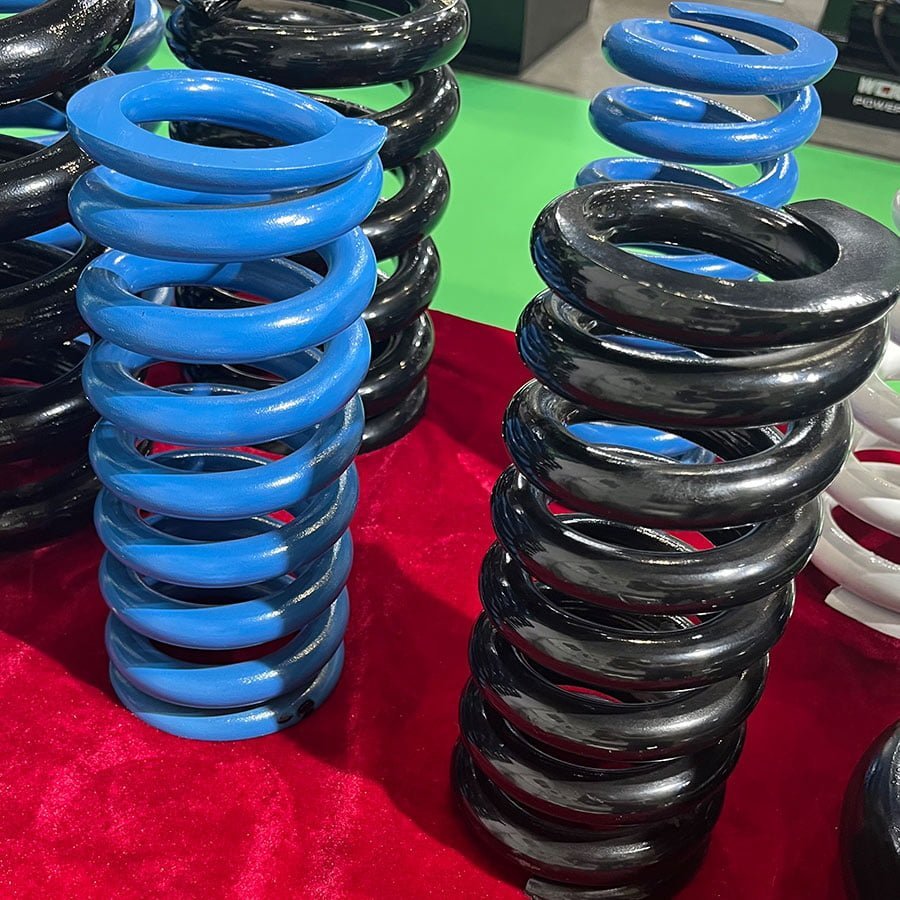

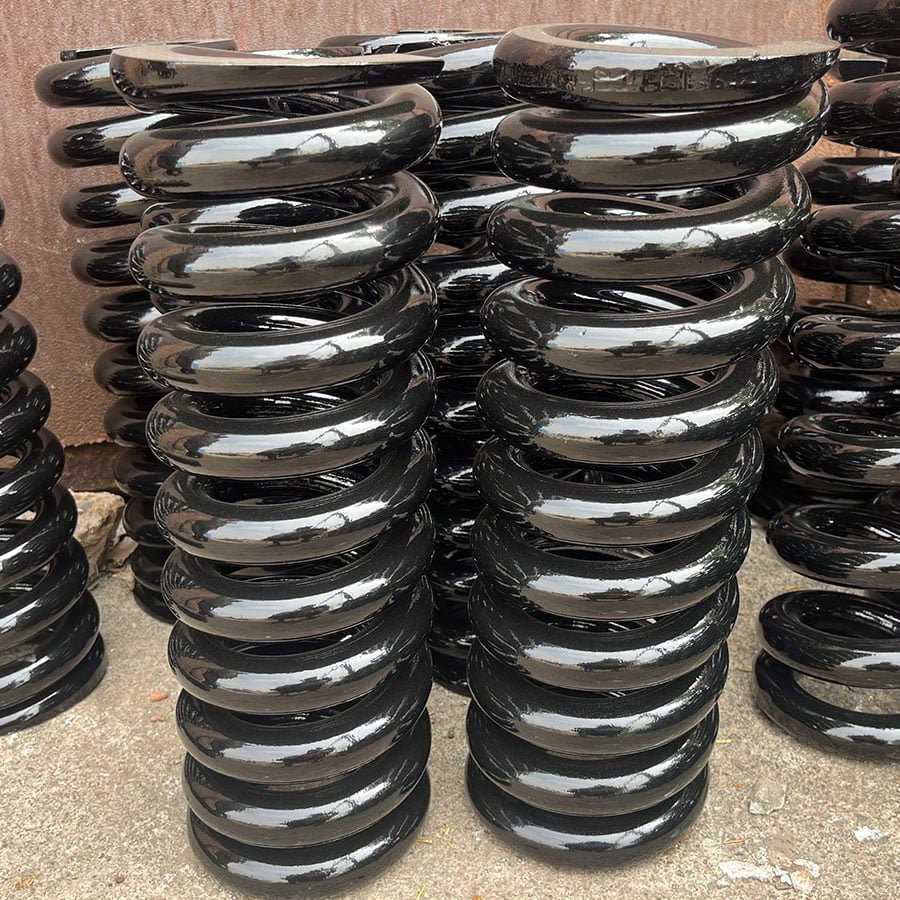

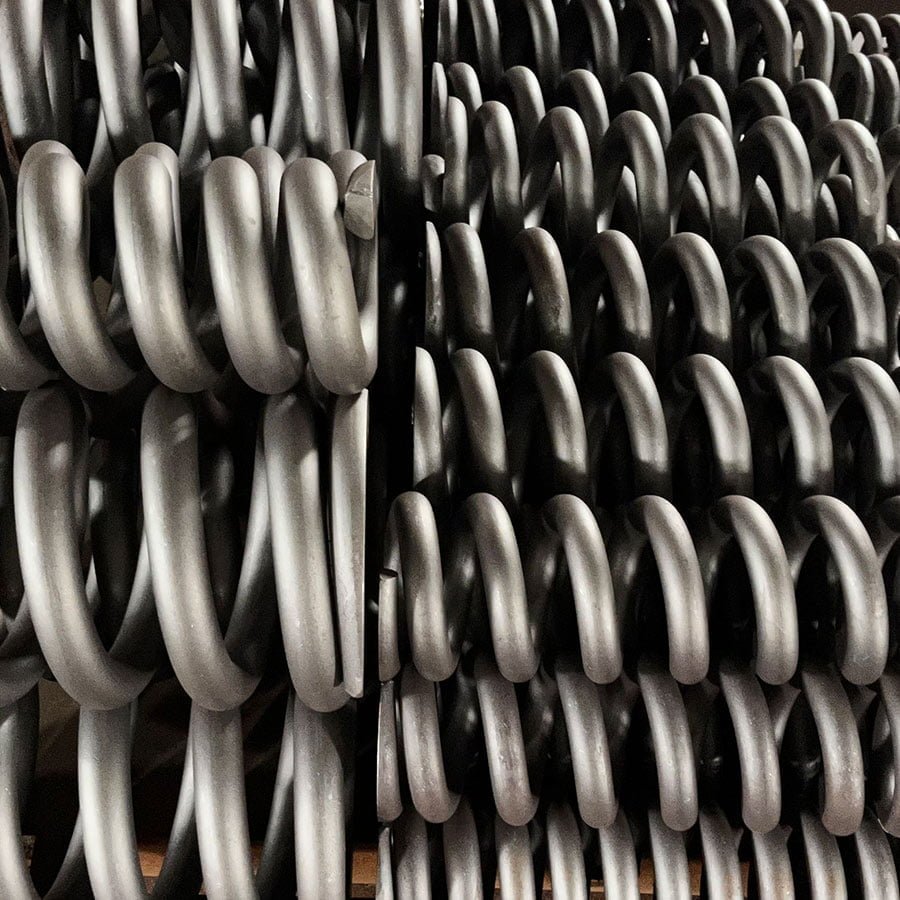

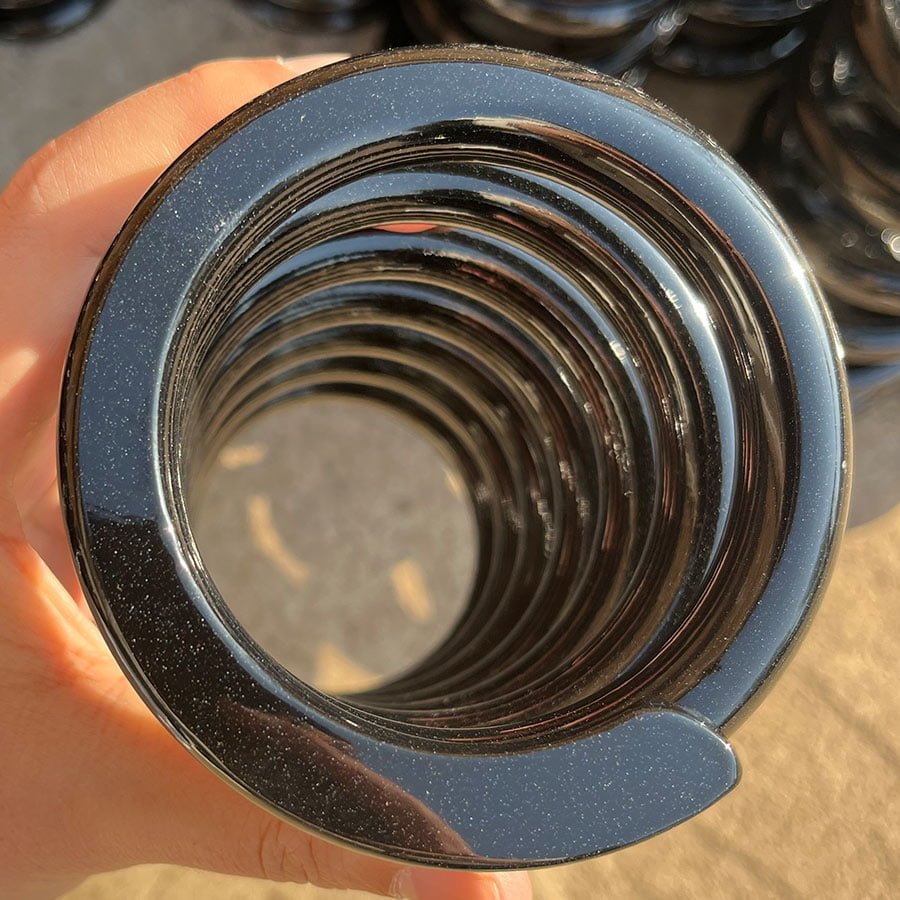

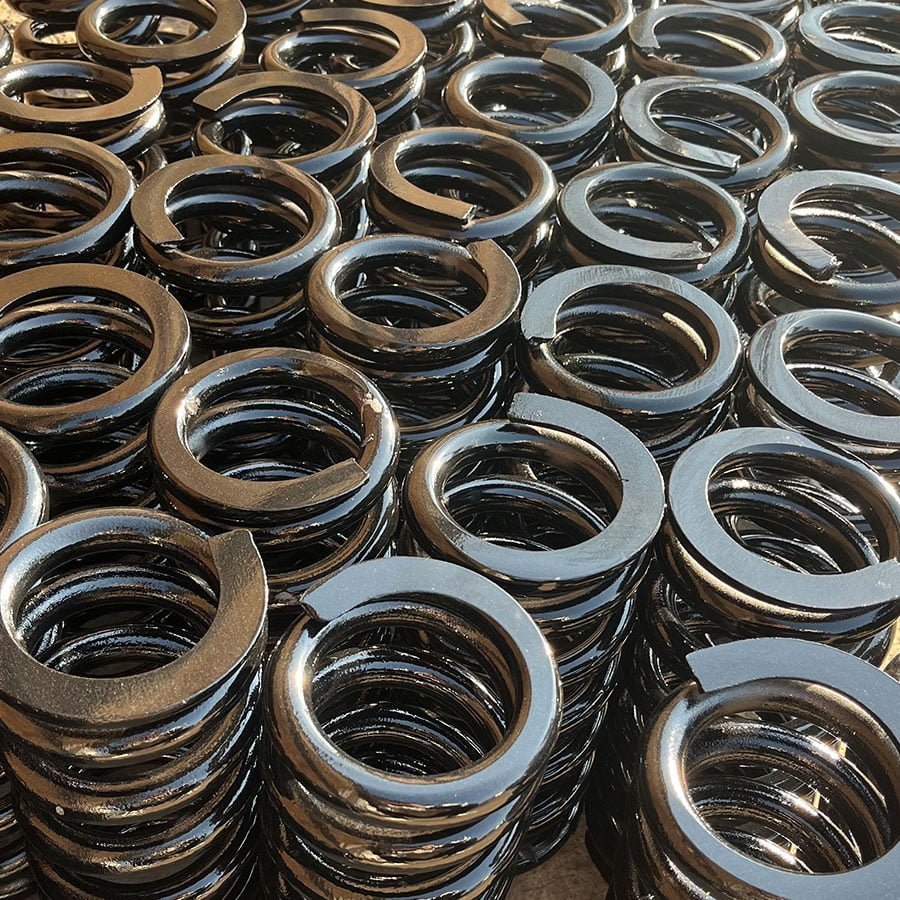

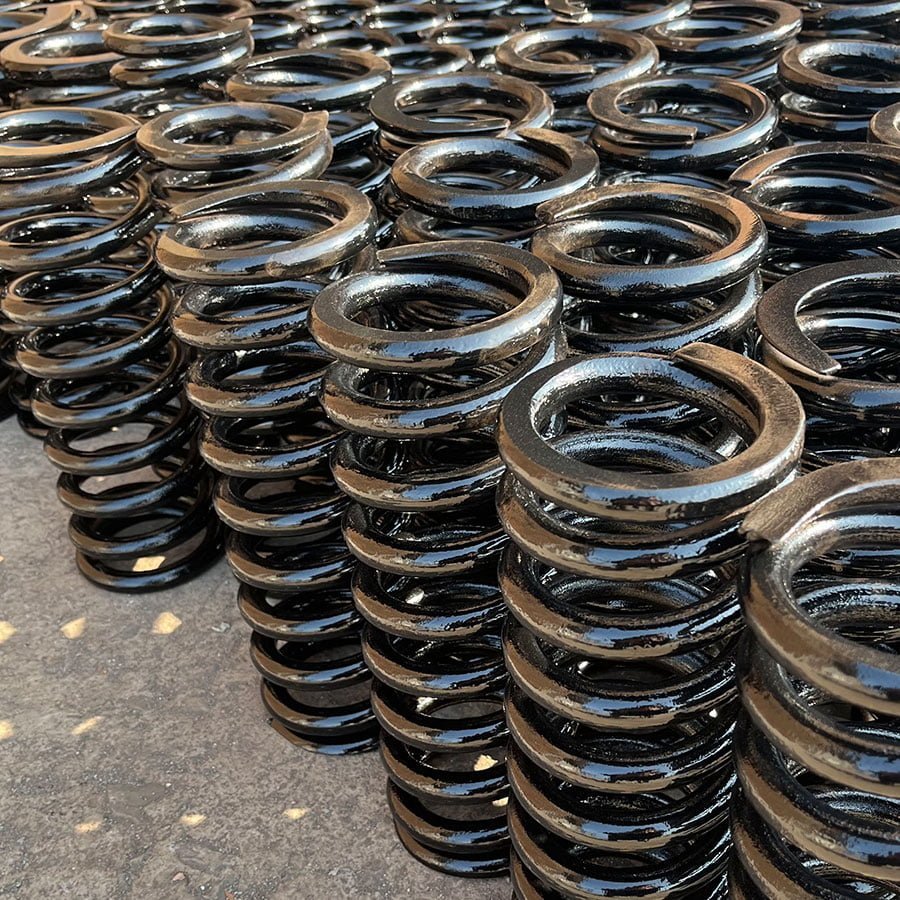

Vibrating screen compression spring

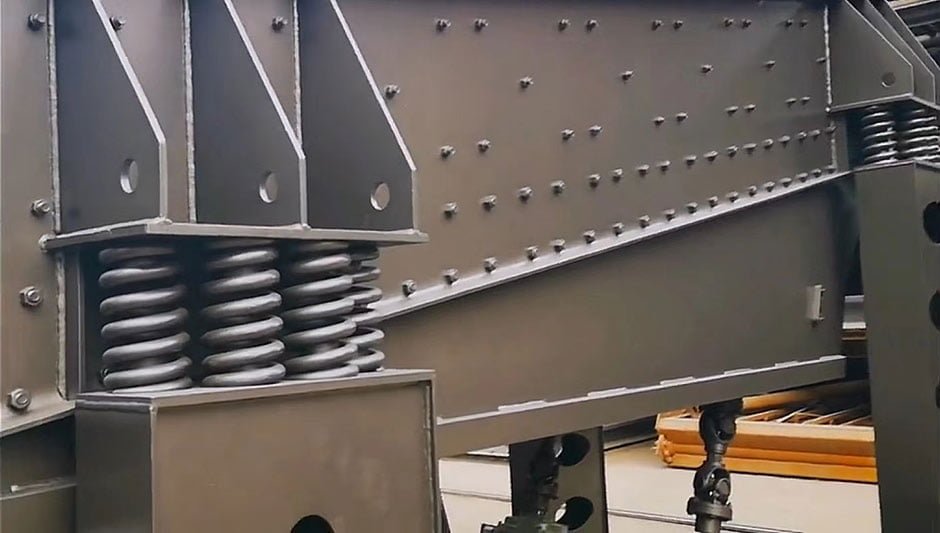

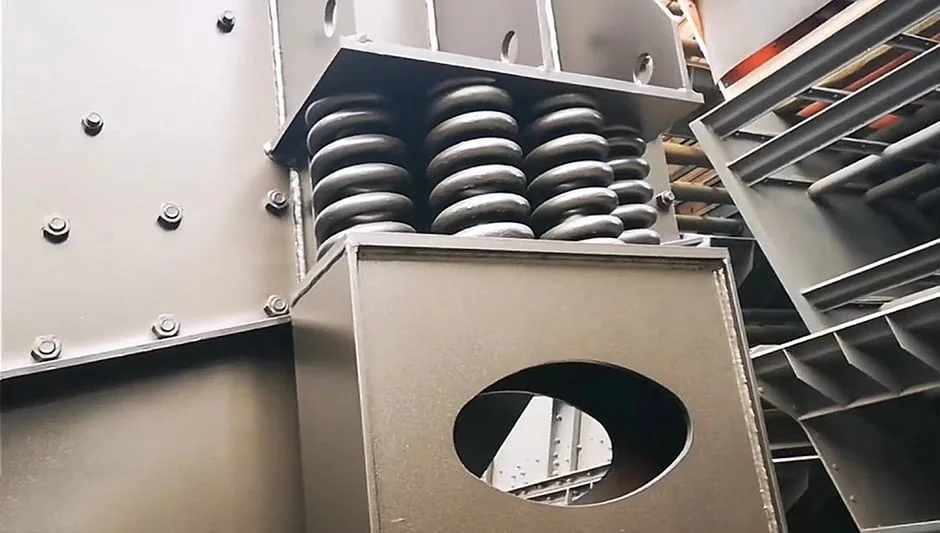

Vibrating screen springs is a very important part of the vibrating screen, their main role is to provide the necessary elastic and vibration support for the vibrating screen. When the vibrating screen starts to work, the exciter will produce a periodic vibration force, so that the screen box and screen will vibrate. In this process, the compression spring plays a key role. Through their elasticity and deformation, they provide the necessary support and buffer for the screen box and screen, making the screening process more stable and efficient.
The performance of the vibrating screen compression spring directly affects the screening effect and service life of the vibrating screen. If the elasticity of the spring is insufficient or the deformation is too large, it will cause the vibration of the screen box and screen to be unstable, and may even damage the equipment. Therefore, the selection of a suitable compression spring is crucial to the normal operation of the shaker.
| Wire diameter | 12mm to 60mm |
| Outer diameter | 80mm to 350mm |
| Free length | 150mm to 1200mm |
| Material | 55CrSi |
| Pitch | Constant Pitch |
Application:Vibrating screen, vibration platform, vibration conveyor, coal coke equipment, industrial kiln, train, cone crusher, hammer crusher, jaw crusher and other large mining equipment.
Production equipment:200 type spring grinding machine, 350 type spring grinding machine, hot coil spring machine, spring steel heating furnace
Test equipment:Industrial temperature measuring gun, spring testing machine, metallographic microscope, bench hardness tester
Commonly used Vibrating screen springs model
（Type: Wire diameter * Mean coil diameter * Height * Active number of coils * Total coils）| Type | Spring rate | Applicable models |
| 35*180*420*6*8 | 422 | 2YKZ3070，2YKZ3080 |
| 35*180*420*5*7 | 506 | 2YKZ3680，3YKZ3080，3YKZ3070，4YKZ3070 |
| 35*180*420*5.5*7.5 | 460 | 3YKZ3070，3YKZ3080 |
| 32*180*400*5*7 | 354 | 3YKZ2470，2YKZ3070，2YKZ3080 |
| 22*95*250*6.5*8.5 | 414 | 4YKQ22(24126)70，3YKQ20(22124)70，3YKQ20(22124)60 |
| 20*90*250*6.5*8.5 | 332 | 3YKQ22(24126)70，4YKQ20(22124)60 |
| 18*88*250*6.75*8.75 | 224 | 2YKO22(24)70，2YKQ20(22124126)60，3YKQ20(22124)60 |
| 40*185*500*6.5*8.5 | 612 | 3YKZ3680 |
Spring test standard
appearance test
Through visual inspection or magnifying glass observation, check whether the appearance of the spring is intact and whether there are obvious defects, such as cracks, rust, deformation and other problems. If the requirements are more strict, we can also use flaw detection equipment for testing.
Measurement length and diameter
The measurement of length and diameter is an important part of the performance test of compression springs. Use appropriate tools to accurately measure the length and diameter of the spring to ensure that it meets the design requirements.
hardness test
For the coil spring for vibrating screen, its hardness is also an important performance parameter.
Other performance tests
According to specific needs, other performance tests can also be carried out on the spring for vibrating screen, such as fatigue life test, durability test, etc.
| Number | Item | Standard |
| 1 | Spring height | Tolerance±2 |

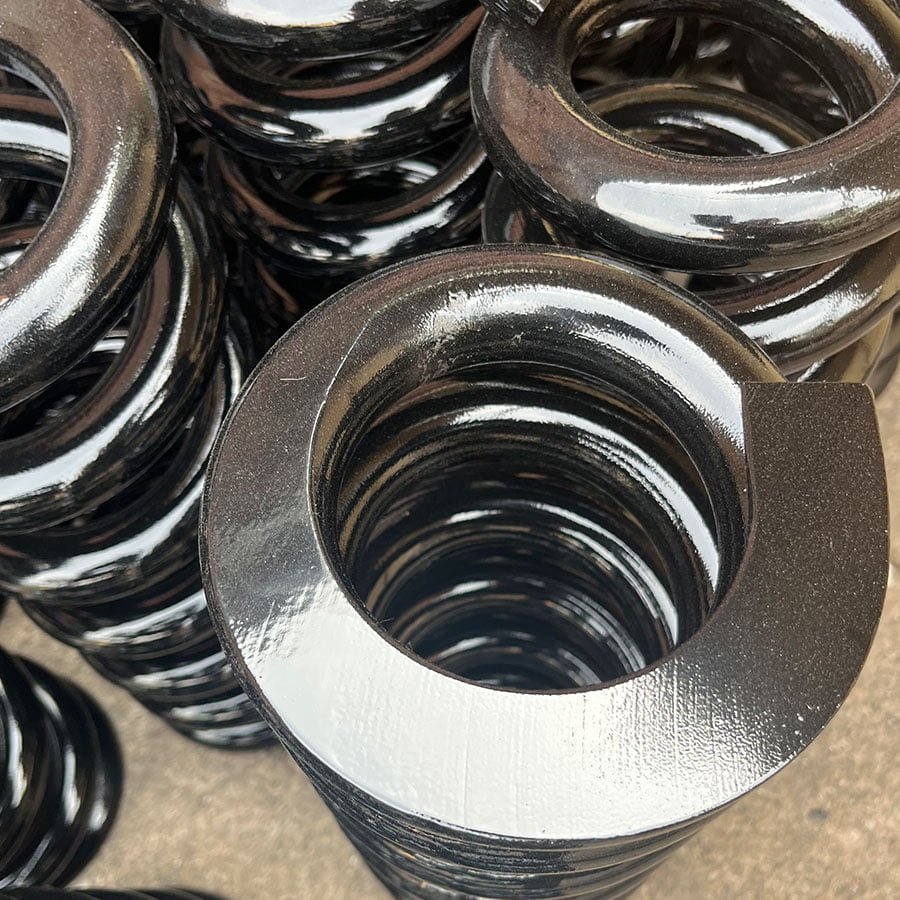

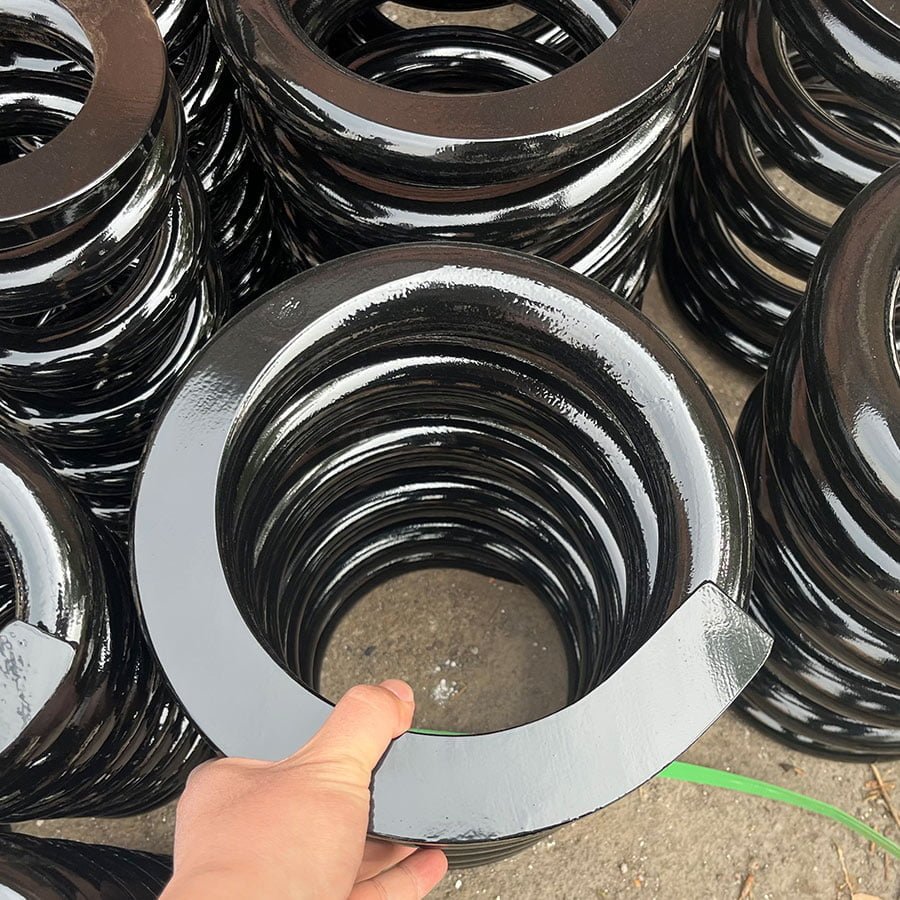

| 2 | Spring ends | Flat area≥2/3 |
| Plane roughness≤12.5 | ||
| Thinnest thickness≥1/8d(Wire diameter) | ||
| 3 | Hardness | 44-52HRC |
| 4 | Surface | The surface should be smooth, without visible defects |
| 5 | Metallographic | According to material standard |
| 6 | Perpendicularity of spring axis line and end face | Spring height≤250mm error of perpendicularity≤3mm |
| Spring height>250mm error of perpendicularity≤5mm | ||
| 7 | Straightness of spring | <5mm |
Maintenance
The vibrating screen compression spring needs regular maintenance and maintenance during use to ensure its good working condition. This includes checking the deformation and wear of the spring, cleaning the dirt and impurities on the surface of the spring, and adjusting the preload of the spring. If the spring is found to have serious problems or damage, it should be replaced in time to ensure the normal operation of the shaker.
Why choose HSPR
high quality
HSPR are vibrating screen compression spring manufacturer, best known for their high quality and reliability. The high quality vibrating screen springs can ensure the stable operation of the vibrating screen, reduce the failure rate and improve the screening efficiency. The spring may use high-quality materials and advanced production processes to ensure that its products can maintain stable performance in a variety of working environments.
Technical Strength
HSPR have a strong technical capability to provide customized spring solutions for different screening needs and equipment types. Its research and development team may be able to provide shaker compression springs that meet the characteristics of its equipment and materials according to the needs of its customers, ensuring the best operation of the equipment.
durability
The vibrating screen compression spring needs to withstand large vibrations and shocks during use, so durability is very important. By optimizing the design and material selection, the spring can improve the durability of the product, reduce the maintenance and replacement costs, and bring higher economic benefits to the user.
service support
HSPR provide perfect pre-sales consultation and after-sales service, including technical support, installation and commissioning, maintenance and other services to ensure that users can get timely help and solutions in the process of use.
Reputation
HSPR have a good reputation in the field of spring manufacturing. You can learn about the product and service advantages of spring through market research or peer recommendations.
