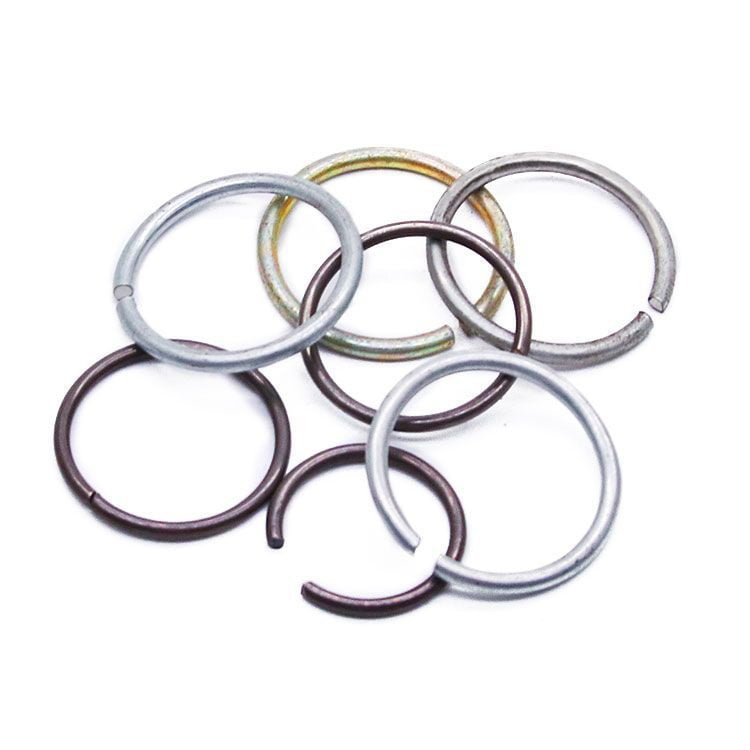

custom Snap Ring
The snap ring is mainly used to install in the shaft groove or hole groove of the machine and equipment, and realizes the function of fastening and supporting through the friction or clamping force generated by its elastic deformation. It mainly plays the role of preventing the axial movement of the parts on the shaft or the hole. There are two common methods for surface treatment of snap ring: one is oxidation treatment, and the other is galvanized passivation treatment.
The snap ring has a wide range of uses, including fixing parts, connecting parts, adjusting distances, buffering and protecting parts. In the field of mechanical manufacturing and maintenance, the Retaining rings is a very useful part.
- Shape: According to drawings or samples
- Raw material:Stainless steel, carbon steel, Chrome Silicon, Phosphor Bronze .etc
- Wire Shapes:Round, Square, Rectangular, L-shaped, Keystone, Beveled Edge, Tapered .etc
- Surface treatment: blue, phosphating, spray (black), dip anti-rust oil, electric galvanizing, color zinc, nickel plating, copper plating, tin plating, etc
- Shape: according to the drawing
- Applications: Automobiles, electrical appliances, etc

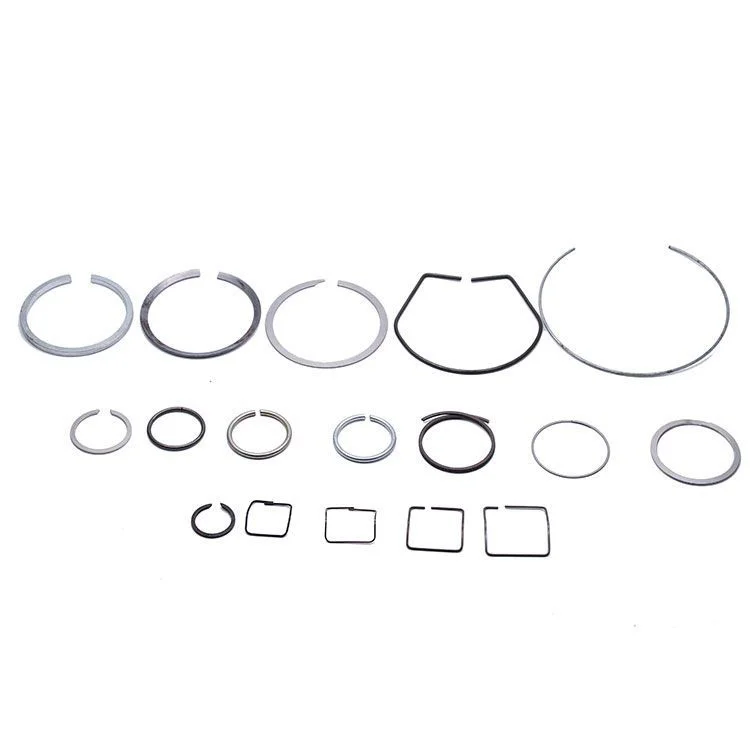

Types of Snap Ring

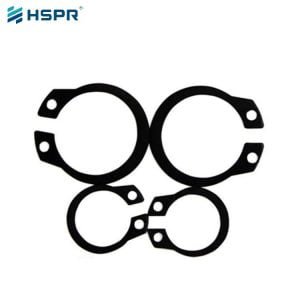

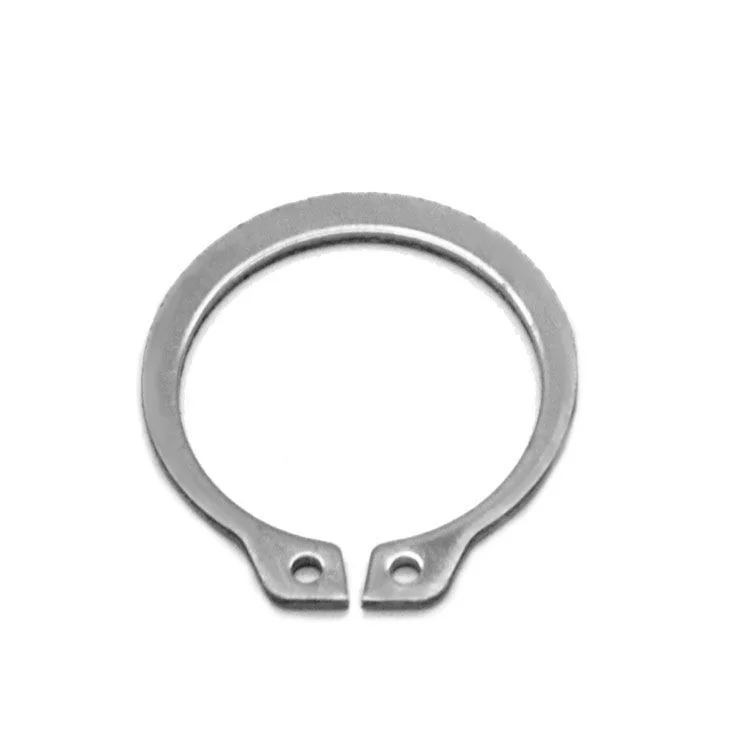

ends with holes ring

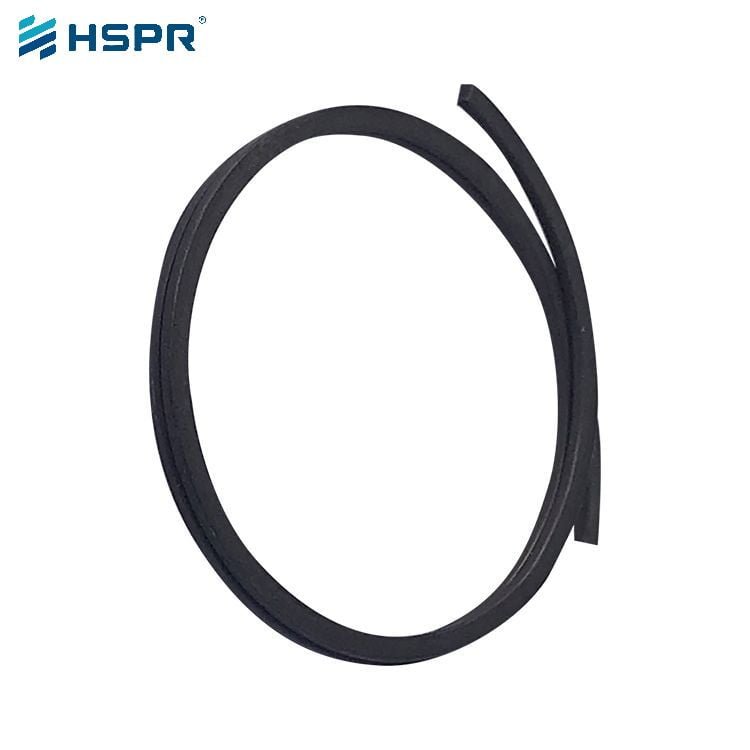

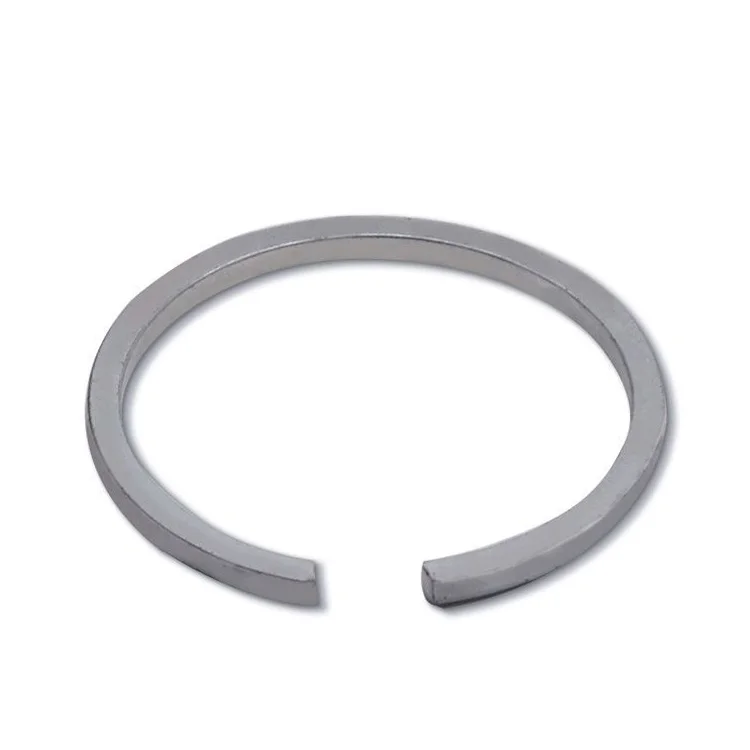

Flast wire Retaining Ring

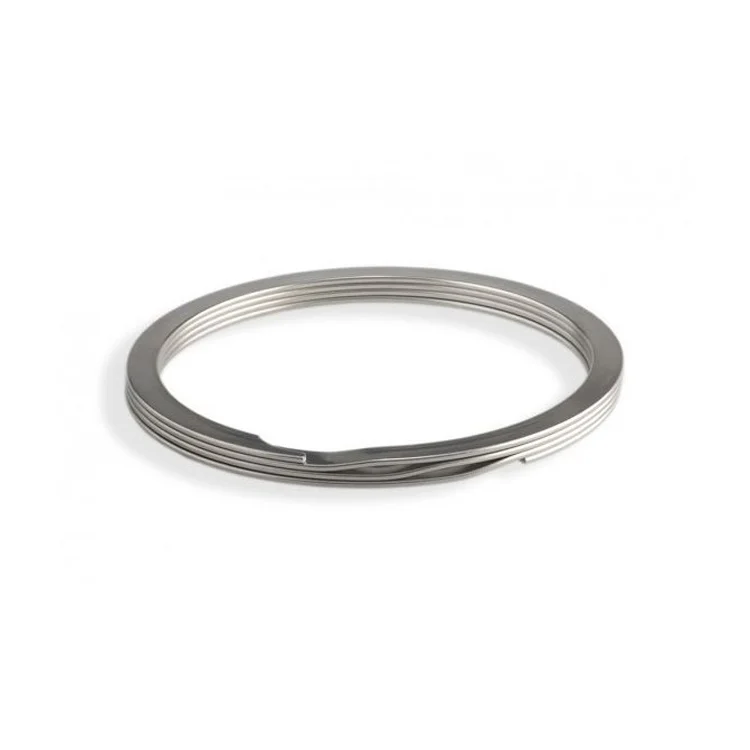

Laminar Seal Rings

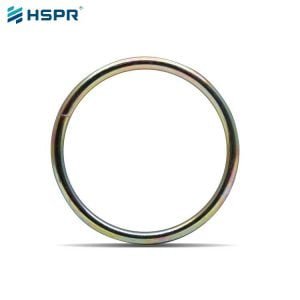

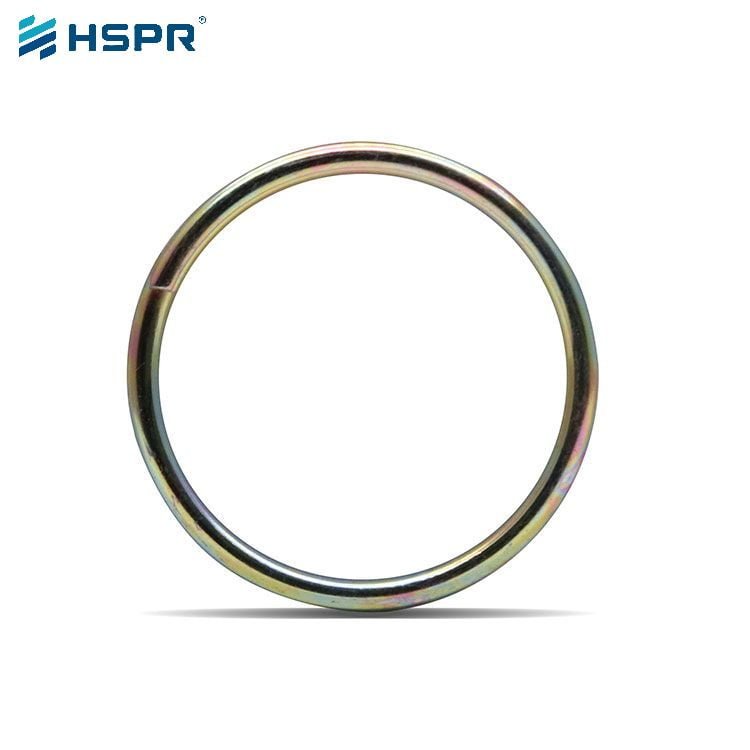

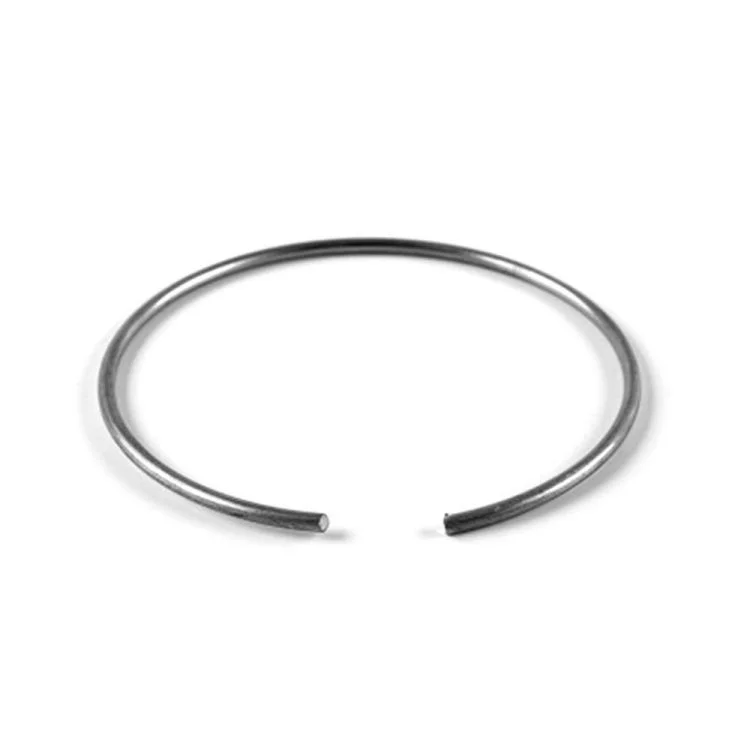

Round wire Retaining Ring

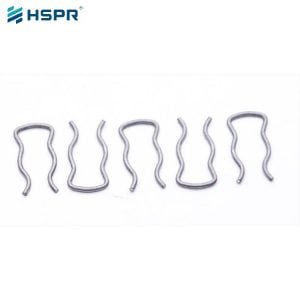

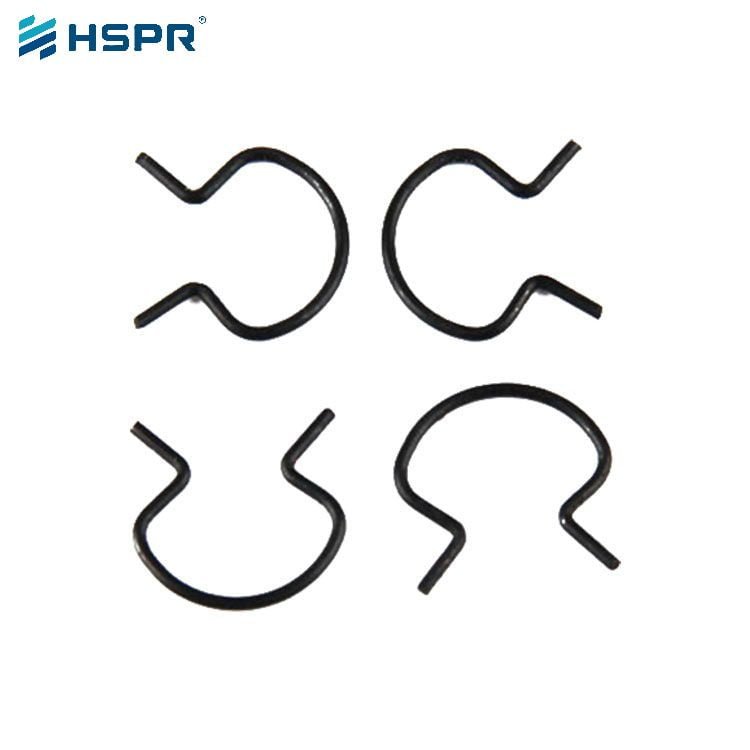

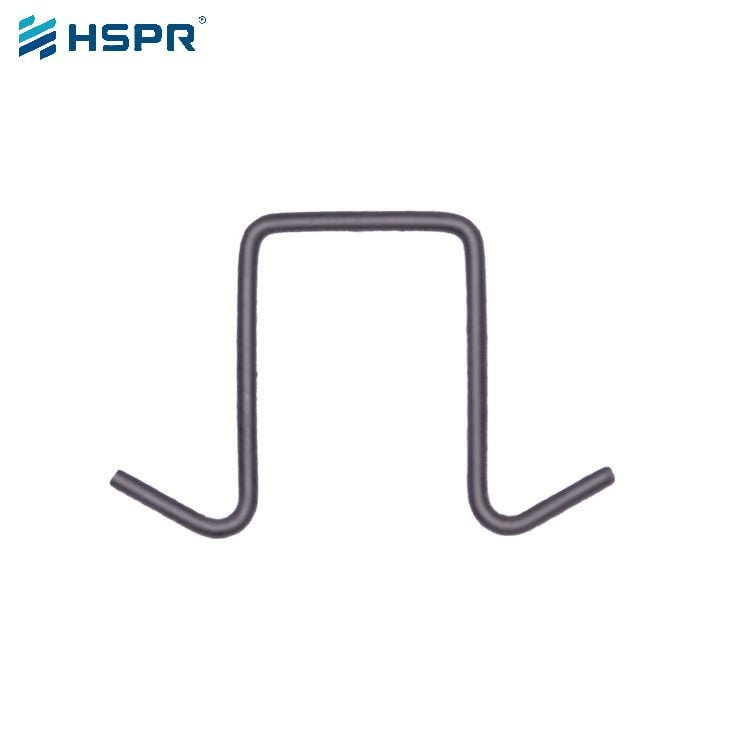

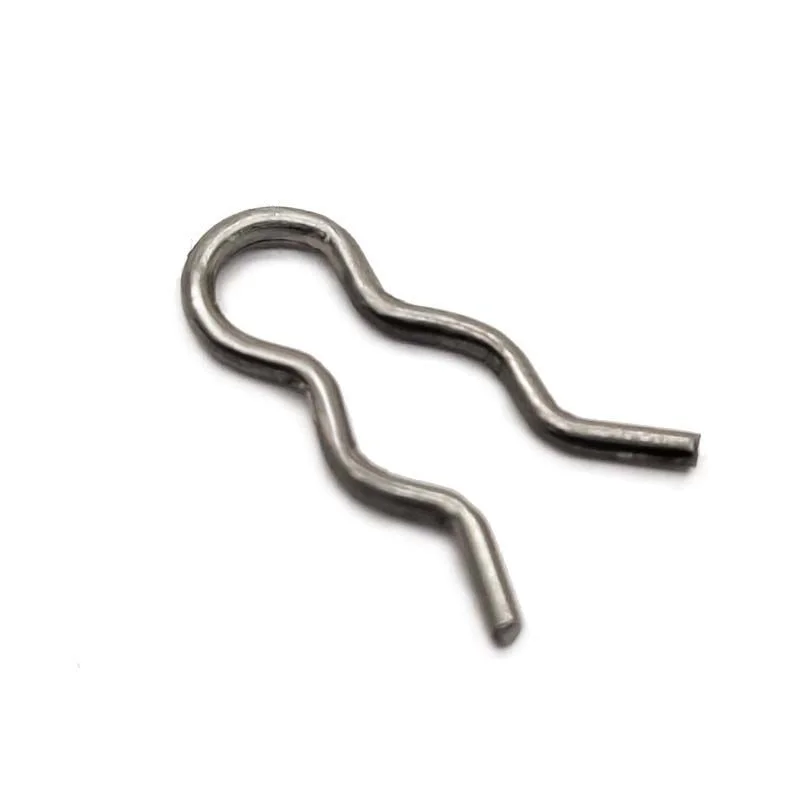

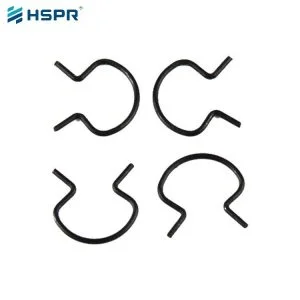

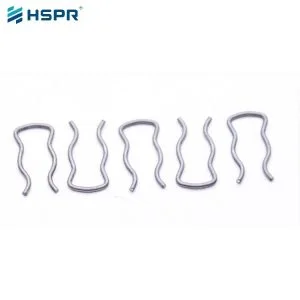

shaped Retaining Ring

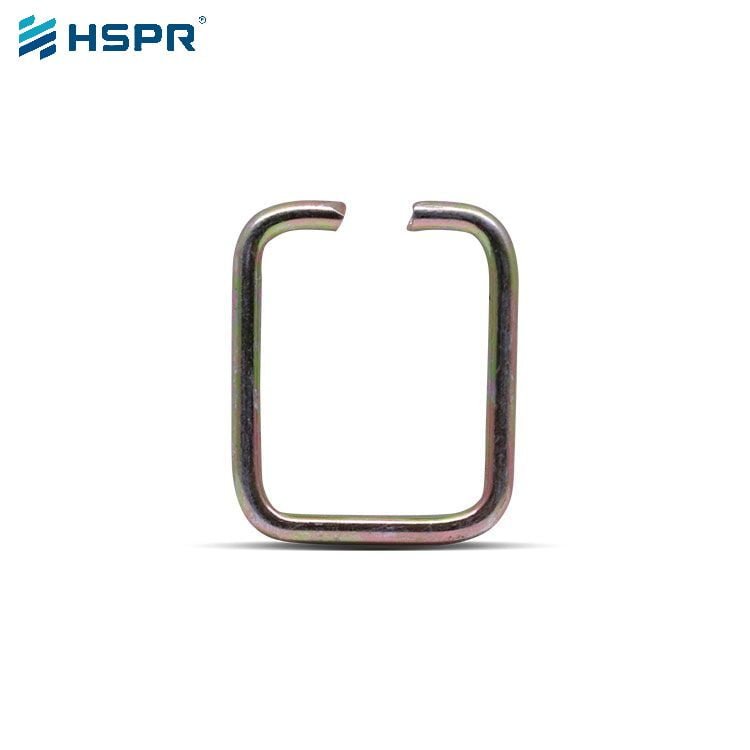

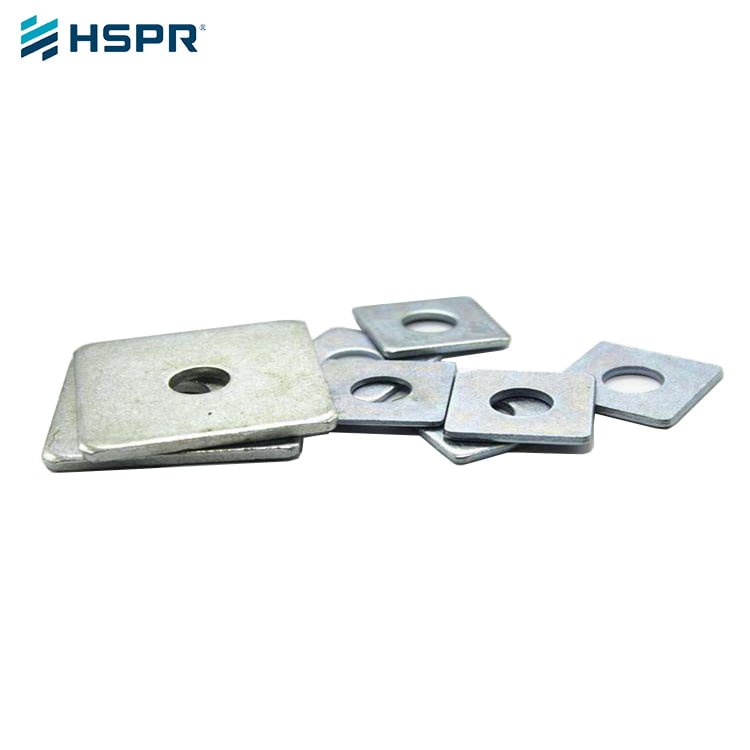

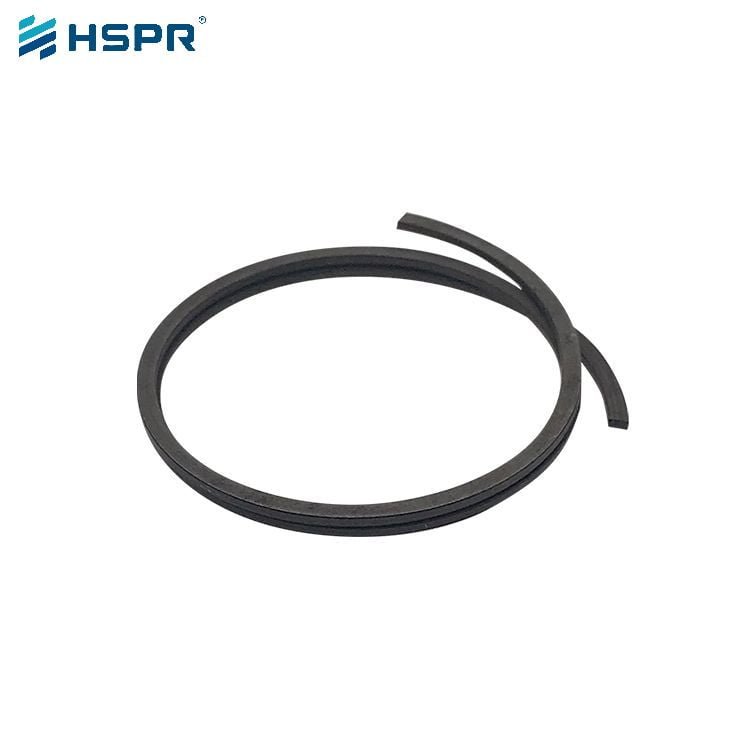

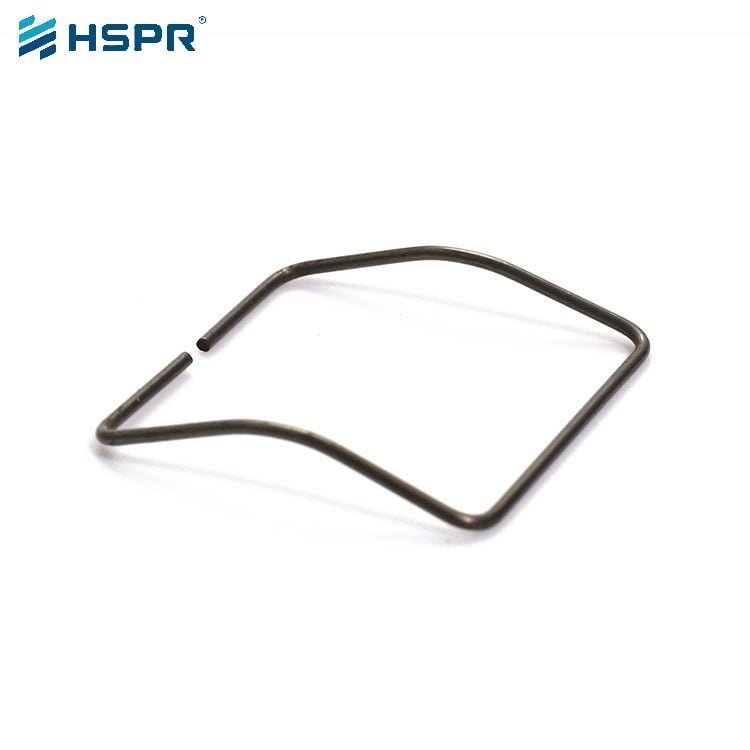

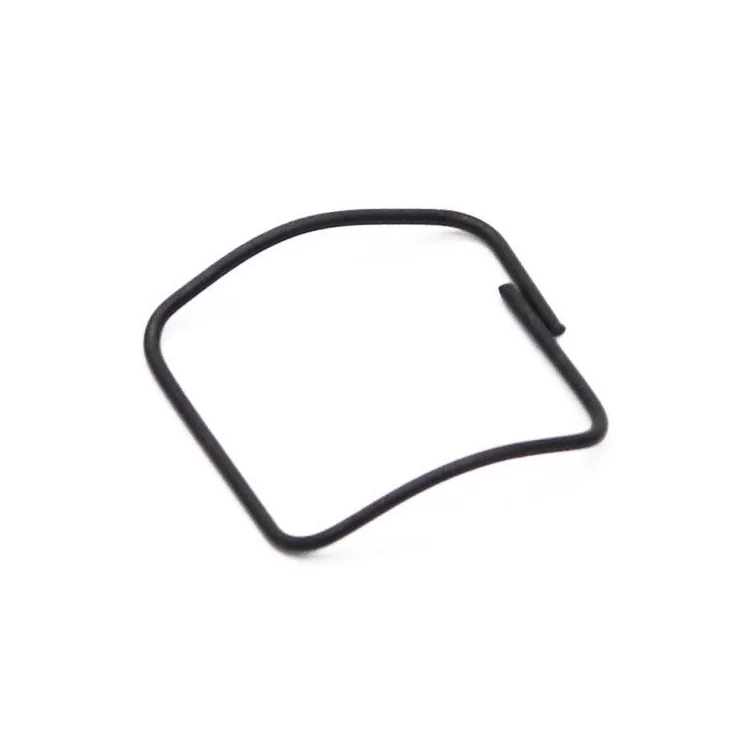

square Retaining Ring

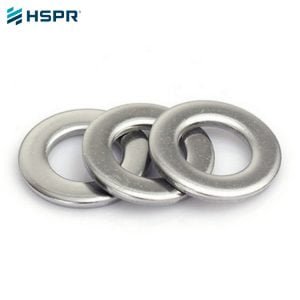

stamping snap ring

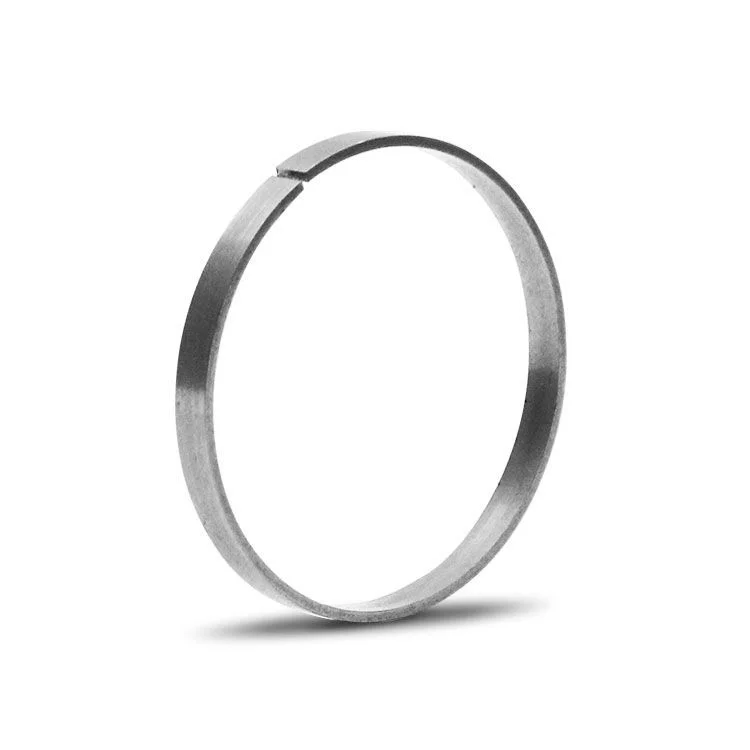

Straight cut ends ring

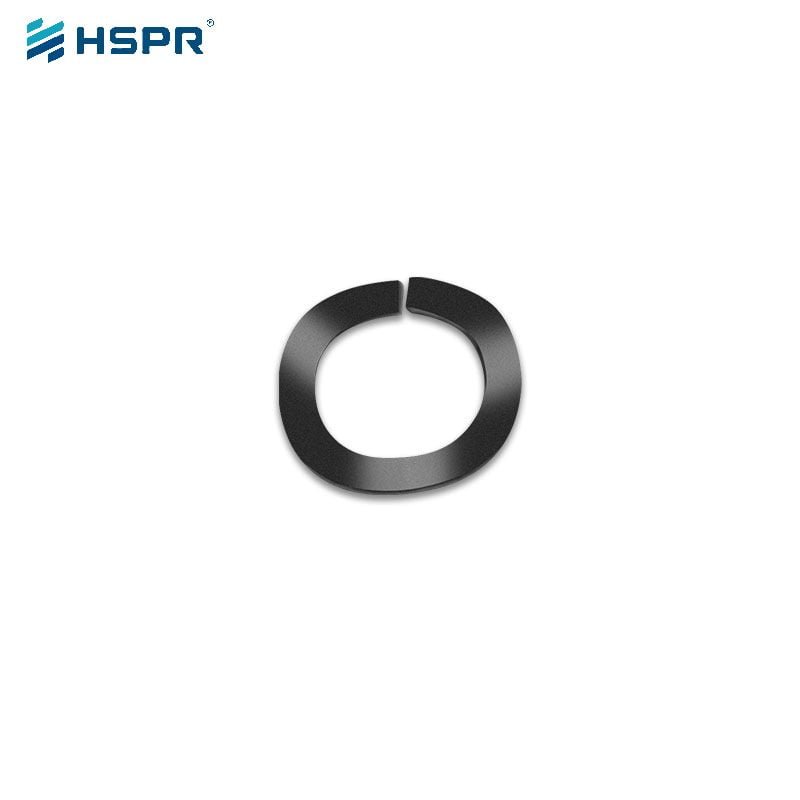

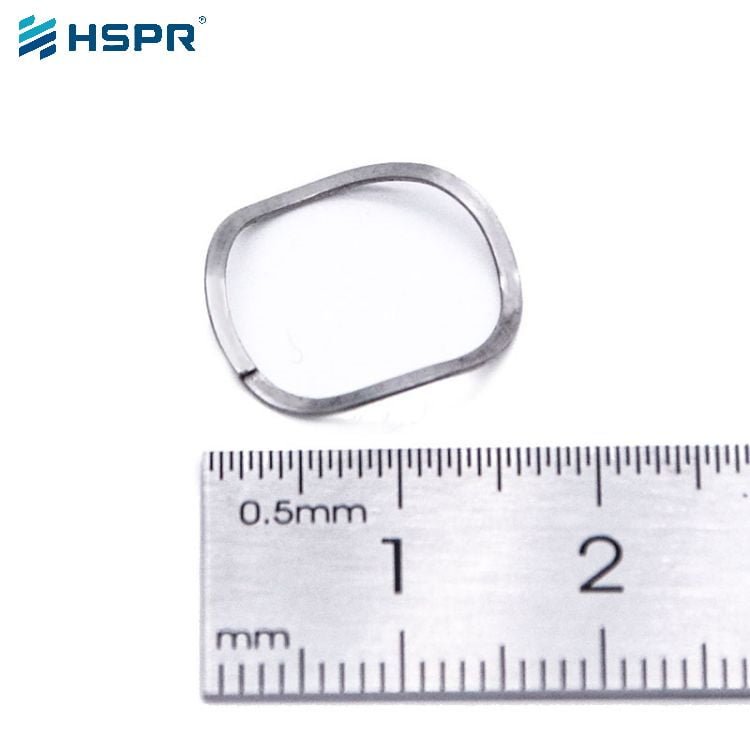

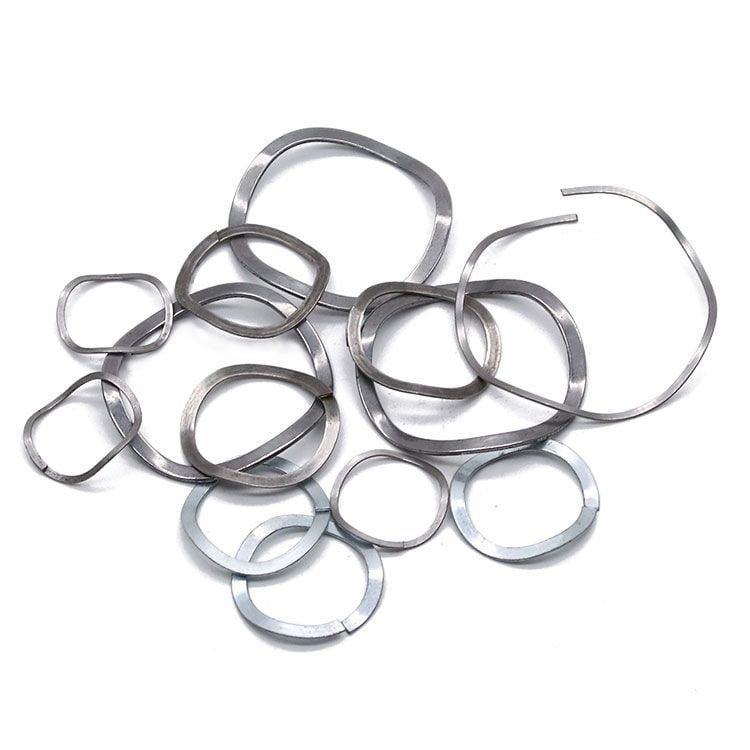

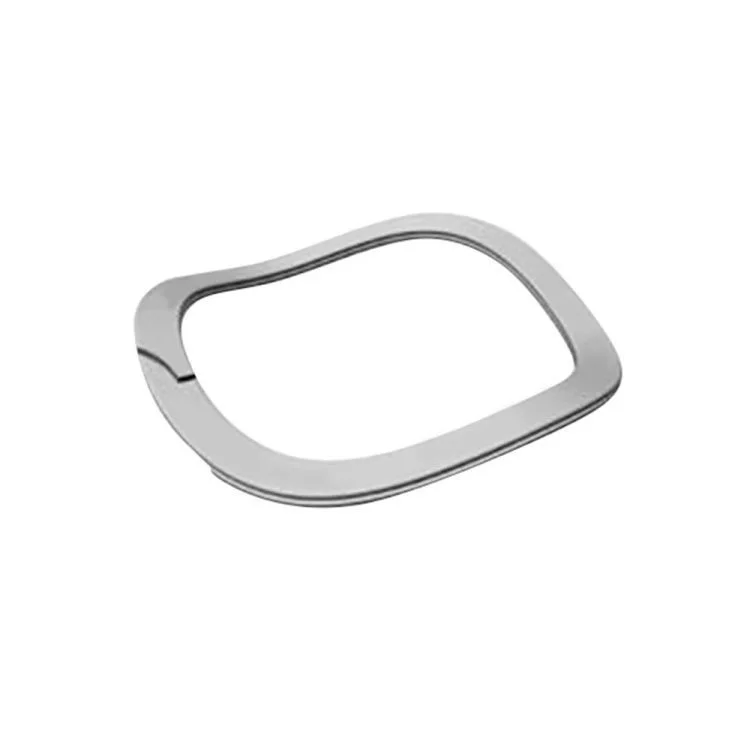

Wave ring
material
| Material | Type | Chemical Composition | |||||||||
| C | Si | Mn | Cr | Ni | S | P | Cu | V | B | ||
| Stainless steel(SUS) | 301 | ≤0.15 | ≤1.0 | ≤2.0 | 16.0-18.0 | 6.0-8.0 | ≤0.03 | ≤0.045 | 0 | 0 | 0 |
| Carbon steel(SWC) | 65Mn | 0.62-0.70 | 0.17-0.37 | 0.09-1.20 | ≤0.25 | ≤0.3 | ≤0.035 | 0 | 0 | 0 | 0 |
| 60Si2MnA 62Si2MnA | 0.52-0.60 | 1.5-2.0 | 1.0-1.3 | ≤0.35 | ≤0.35 | 0 | ≤0.035 | ≤0.25 | 0.08-0.16 | 0.0005-0.0035 | |
| SK5 SK7 | 0.8-6.0 | 0.01-0.35 | 0.1-0.5 | ≤0.25 | ≤0.2 | ≤0.03 | ≤0.03 | ≤0.25 | 0 | 0 | |

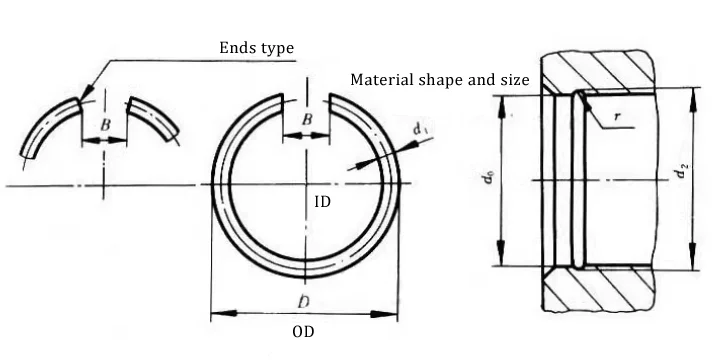

Custom parameter
Provide the necessary parameter information of the spring
- Outside diameter of ring
- Inner diameter of ring
- Opening size :(Close, Open, Angle)
- Wire diameter
- Ring thickness
Provide technical requirements for springs
- Material
- Surface treatment:(Blackening/galvanizing/nickel plating/electrophoresis/spray painting…)
- Strength Requirements (Elastic Properties)
Our advantage
Application
Circlip for bearings
Piston pin clamping spring
Automobile bearing clamp spring
Bearing housing
Auto parts circlip
Automotive interior accessories circlip
extension spring display
FAQ
What is a snap ring used for?
Fixed parts:
The snap ring can firmly fix the mechanical parts to prevent them from loosening or falling off during movement. This is particularly important in high-speed operating equipment, such as machine tools, ships, automobiles, elevators, etc.
Connecting parts:
The retaining rings connect two parts tightly together and is usually used for the connection of bearings and pins. This connection method is simple and effective, and is widely used in the field of mechanical manufacturing.
Adjust distance:
The ring can be used to adjust the distance between the mechanical components to ensure that the clearance between them is maintained correctly, thus ensuring the normal operation of the equipment.
Buffering and protection:
The ring can cushion the shock or vibration between the mechanical components and prevent them from being excessively damaged. At the same time, it also protects mechanical components from wear or damage during use.
Shock absorption and sealing:
The washer has good shock absorption and sealing performance, which helps to reduce the vibration and noise of the equipment, and improve the stability and service life of the equipment.
